Loggyflex trolleys for workshop and warehouse
Loggyflex is unyco’s trolley family for car dealerships, workshops and warehouses: transport trolley, assembly trolley, mobile workbench and tyre trolley on a shared chassis, used every day as workshop trolleys, parts trolleys and spare parts trolleys. They bring parts, materials and wheels quietly and stably to where the work is done, even over uneven floors. The family comprises five trolleys from the Standard to the extra-wide Maxi, the Loggyflex RT 255 tyre trolley and accessories for retrofitting. All models are Made in Germany.
Every Loggyflex has a narrow design and uses height instead of floor space. That way it fits between two workstations without getting in the way. If a job is interrupted, simply push the removed parts to one side: nothing lies on the floor, everything stays secure and within reach.
Which Loggyflex for which task?
The models share the same chassis, handbrake and parking brake. They differ in load capacity, levels and access to the parts.
| Task | Suitable model | Why |
|---|---|---|
| Collecting materials and picked orders, spare parts store | Standard, trolley | 300 kg on the plastic base, 6 lashing straps for bulky and high-stacked loads |
| Working on gearboxes, cylinder heads or seats | Duo, assembly trolley | Intermediate shelf for 100 kg at working height, mobile workbench |
| Placing bumpers, wings and windscreens | Duo mini, mobile workbench | 1,100 mm high, accessible from four sides, intermediate shelf at three heights |
| Engine removal, sorting parts by level | Trio, trolley with three levels | Two intermediate shelves, up to 500 kg total load capacity |
| Bringing complete wheels to the lift | RT 255, tyre trolley | 8 wheels or 10 tyres, i.e. 2 sets of wheels per trolley |
| Bulky parts, front and rear panels | Maxi, wide trolley | 815 mm wide, mesh cage on three sides, 350 kg |
| Move many trolleys at once | Coupling and drawbar kit | Up to 10 trolleys as a tow train, 1 tonne of towing capacity per kit |
The models compared
Prices, payload, dimensions and weight of all six Loggyflex models side by side. All prices net, delivery time 28 days.
| Model | Standardtrolley€645net | Duoassembly trolley€749net | Duo minimobile workbench€849net | Triothree levels€895net | RT 255Tyre trolley€1,025net | Maxiwide trolley€1,035net |
|---|---|---|---|---|---|---|
| Levels | Plastic base | Plastic base + 1 intermediate shelf | Plastic base + 1 intermediate shelf (3 heights) | Plastic base + 2 intermediate shelves | 2 levels for wheels | Film-faced plywood, mesh cage |
| Load capacity | 300 kg | 300 + 100 kg | 300 + 100 kg | 300 + 2 × 100 kg | 260 kg | 350 kg |
| Dimensions in mm (L × W × H) | 1.200 × 590 × 1.600 | 1.200 × 590 × 1.600 | 1.200 × 590 × 1.100 | 1.200 × 590 × 1.600 | 1.200 × 590 × 1.600 | 1.235 × 815 × 1.600 |
| Weight | 45 kg | 48 kg | 44 kg | 54 kg | 60 kg | 62 kg |
| Details | View model | View model | View model | View model | View model | View model |
Load capacity: plastic base plus intermediate shelves of 100 kg each. All prices net, excl. VAT and shipping, as of October 2026.
The Loggyflex models in action
In brief: the Standard, Duo, Duo mini, Trio and RT 255 in use in the workshop.
The videos only load from YouTube (youtube-nocookie.com) after you click. When they do, data is transferred to Google. You can also find all videos on our YouTube channel.
What makes every Loggyflex special
The Standard, Duo, Duo mini, Trio and RT 255 share these features. Where a model differs, this is noted. The Maxi is built differently; its equipment is listed in its own section.

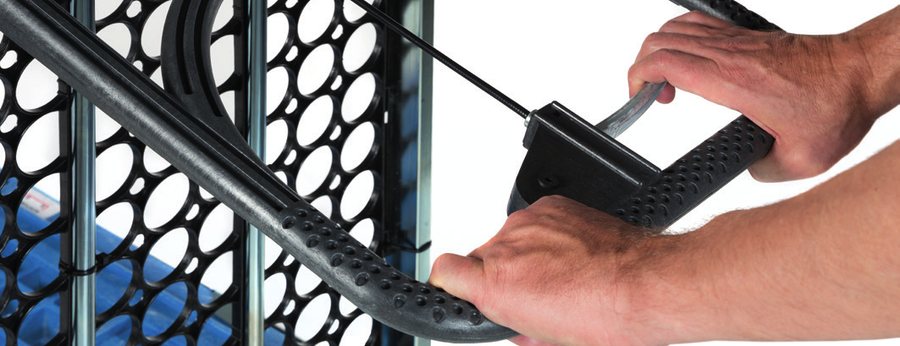

Swivelling handle with handbrake
Ergonomically shaped and swivelling, with an integrated brake lever. It lets you brake the loaded trolley safely on ramps and slopes.

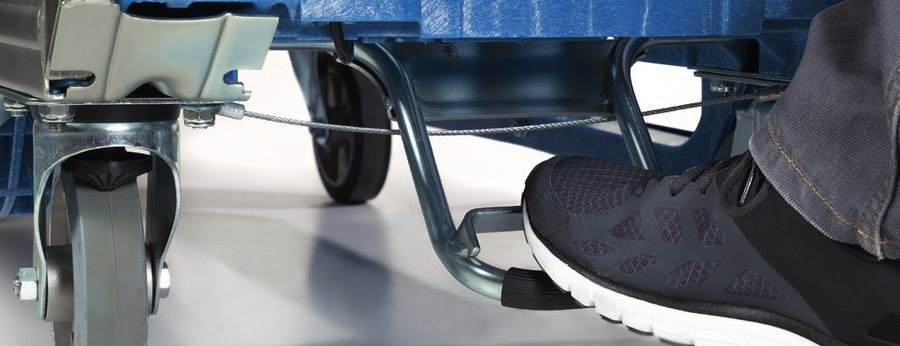

Parking brake by foot
One press of the foot is enough: the trolley stands firm, even fully loaded. Nothing rolls away while you load and unload.

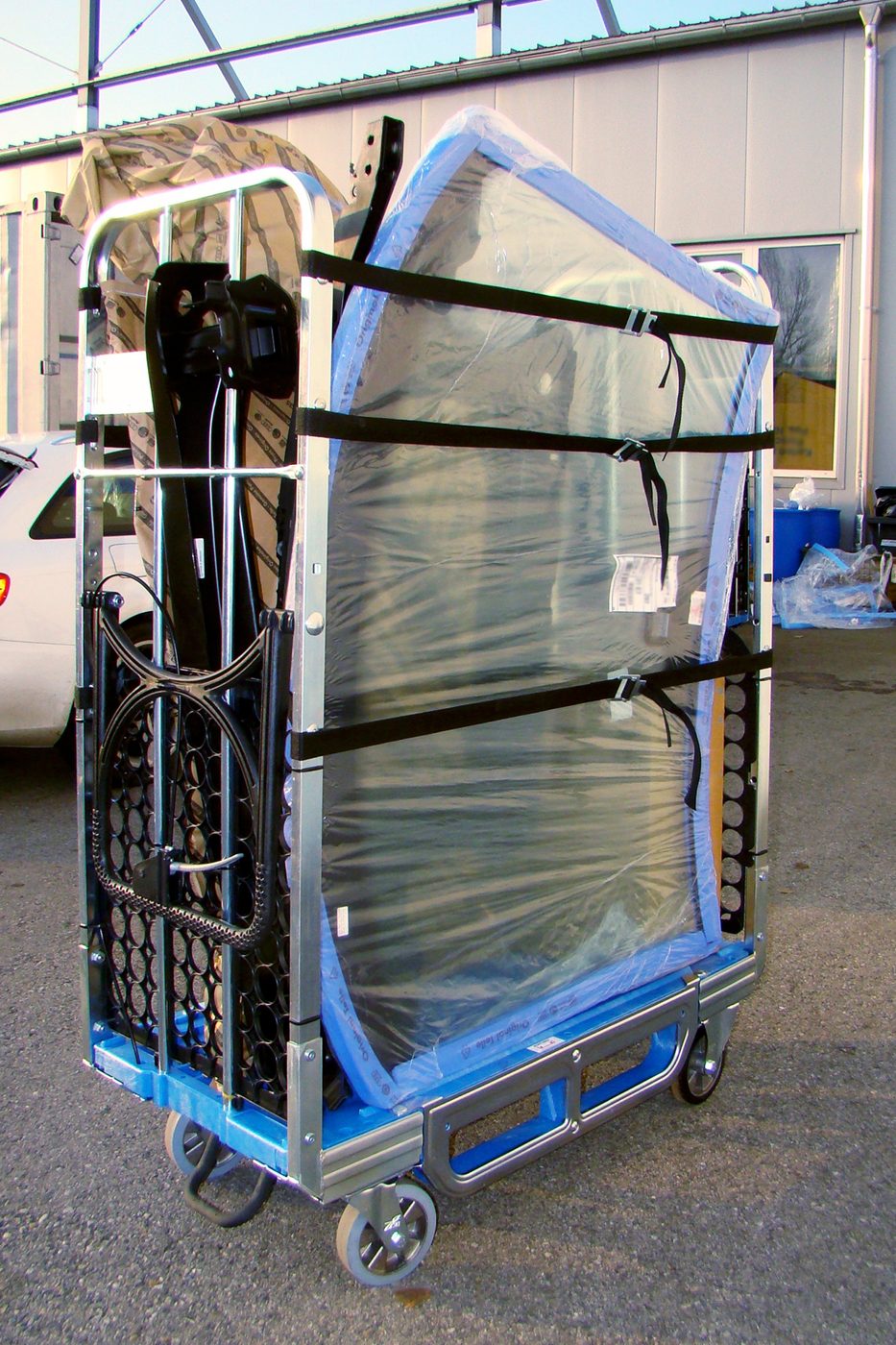

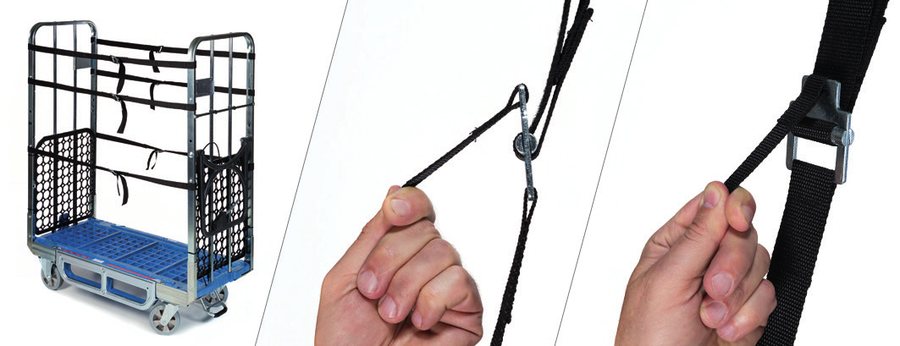

6 integrated lashing straps for load securing
The quick-release buckles let you secure bumpers, large cartons and stacks in seconds. Standard on the Standard, Duo and RT 255. The Duo mini and Trio have no lashing straps.

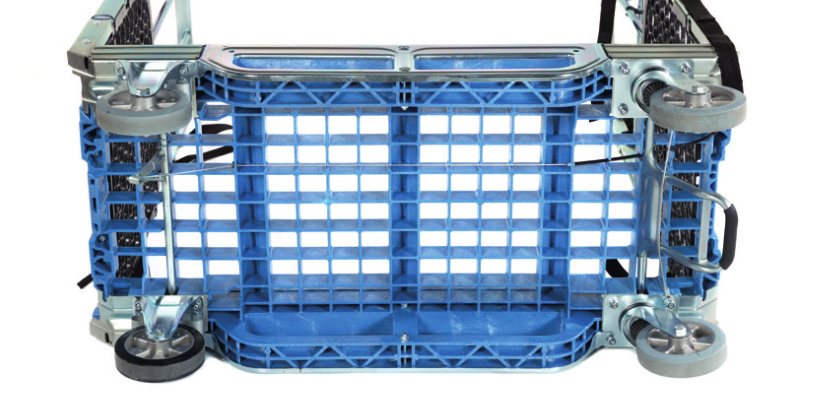

Robust plastic floor, real chassis
The structured floor is made of recycled material. It runs on smooth-running 160 mm castors with a low breakaway force, even fully loaded, all braked and acid-resistant.

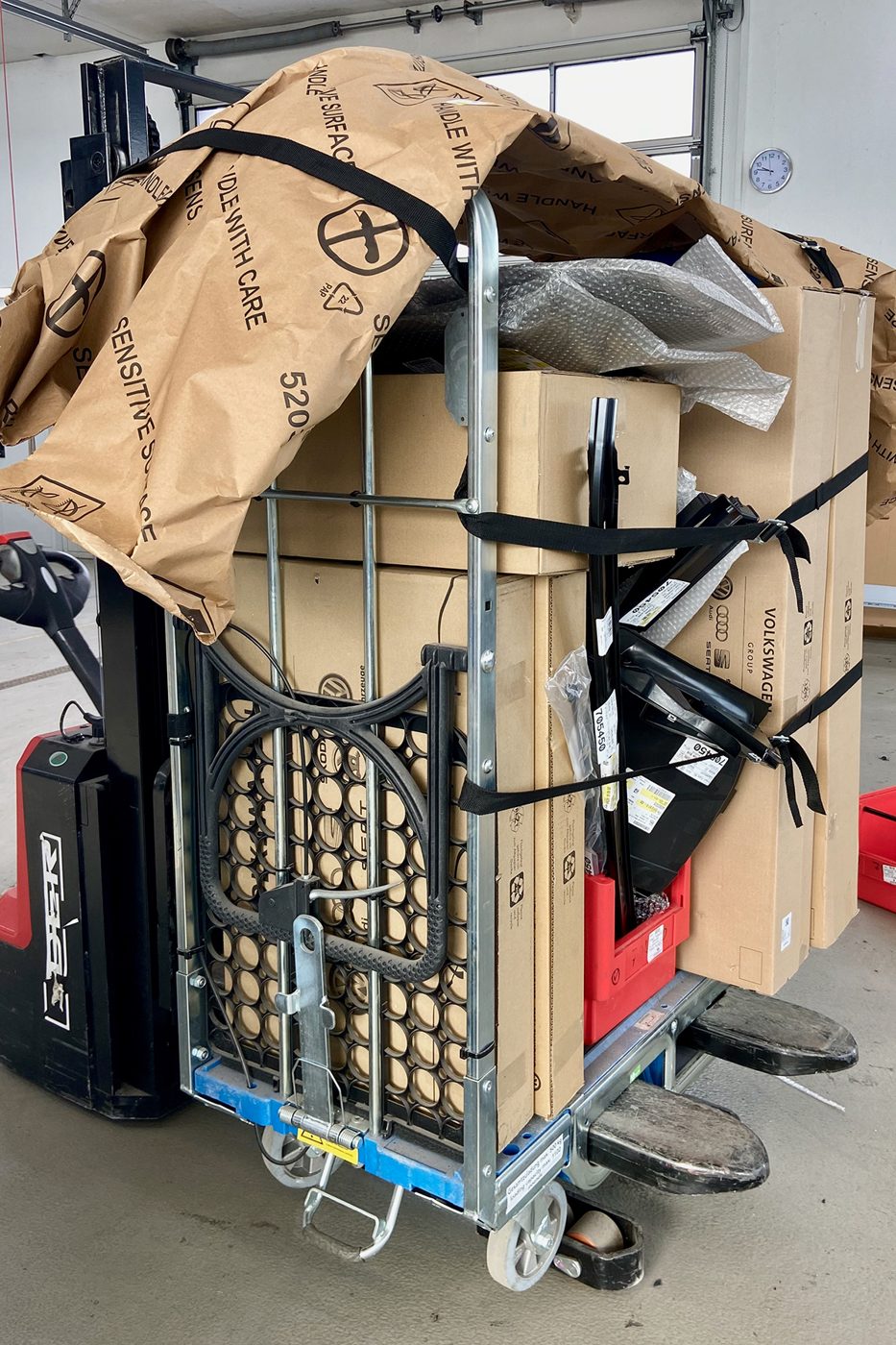

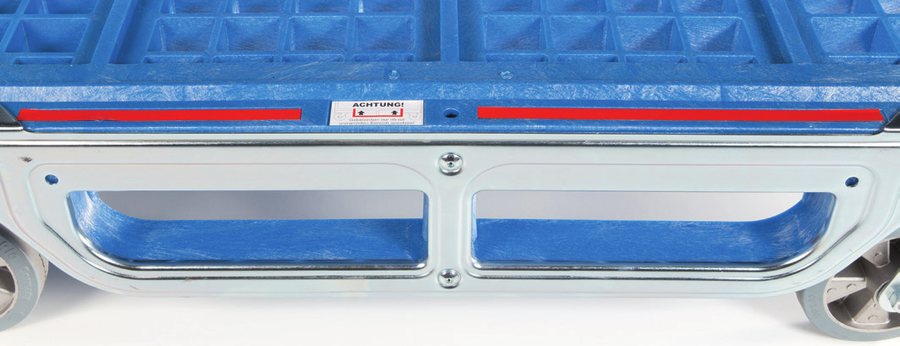

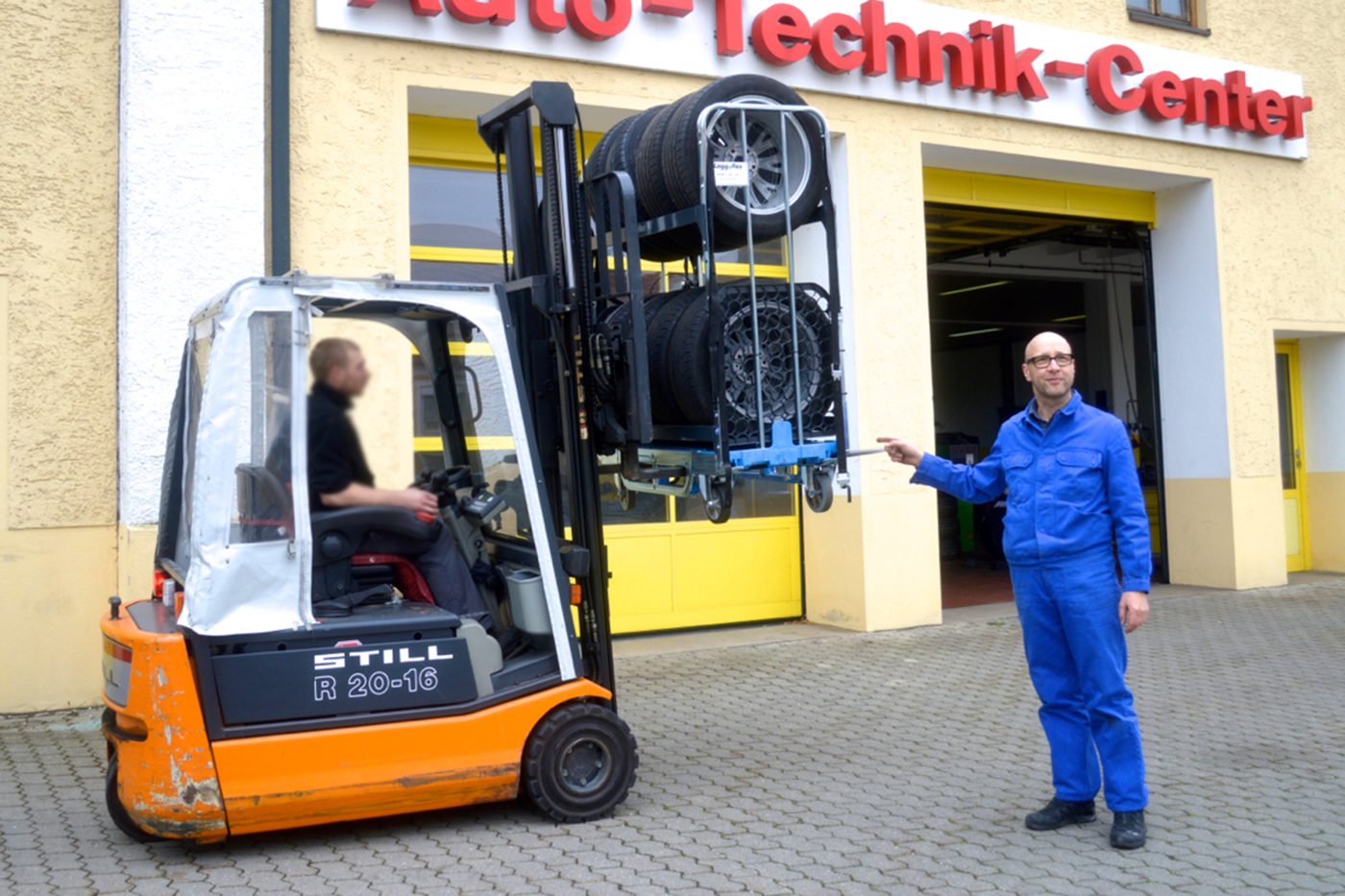

Up to the next level with a forklift
The forklift pockets let you lift the loaded trolley into a multi-level warehouse or onto the lorry without unloading.

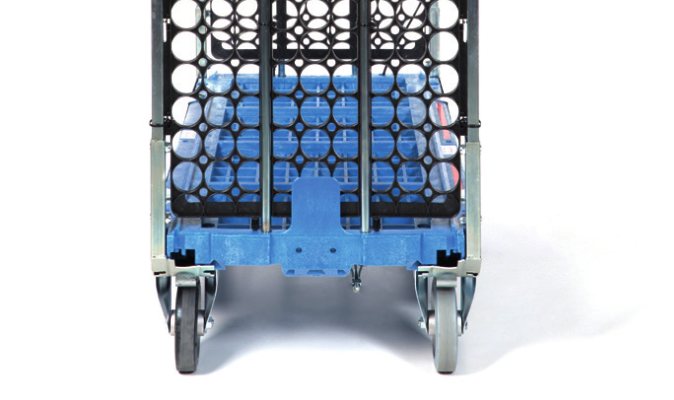

Only 59 cm narrow
The trolley fits between two vehicle lifts and through narrow aisles.

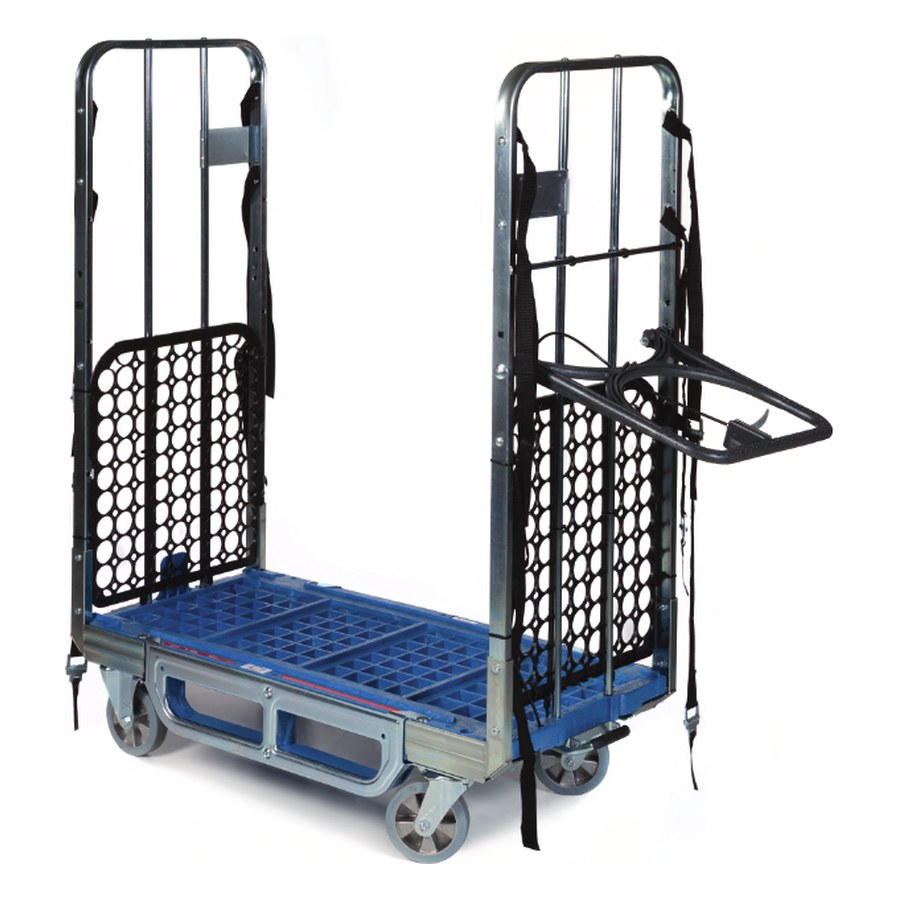

Loggyflex Standard: trolley for collecting materials
The basic model of the family: plastic base for 300 kg, a proper chassis with four braked castors, handbrake and parking brake. As a parts trolley and transport trolley, it collects materials in the workshop, body shop and spare parts store.
Loggyflex Standard trolley
1,200 × 590 × 1,600 mm · 45 kg · 300 kg load capacity
Good to know
Pairs well with: foam pad for the plastic floor, intermediate shelf (turns it into a Duo or Trio), RT conversion kit (turns it into a tyre trolley), coupling and drawbar kit and Trygo add-on attachment.
Handbrake and parking brake
The handbrake lever in the swivelling handle brakes on downhill slopes, while the parking brake holds the loaded trolley in place.
6 integrated lashing straps
With quick-release fasteners, for bulky or high-stacked loads.
300 kg load capacity
Plastic base made of recycled material, frame made of powder-coated hollow steel profiles.
Upgradable
With an intermediate shelf, the RT conversion kit for wheels or a coupling and drawbar for tow trains.

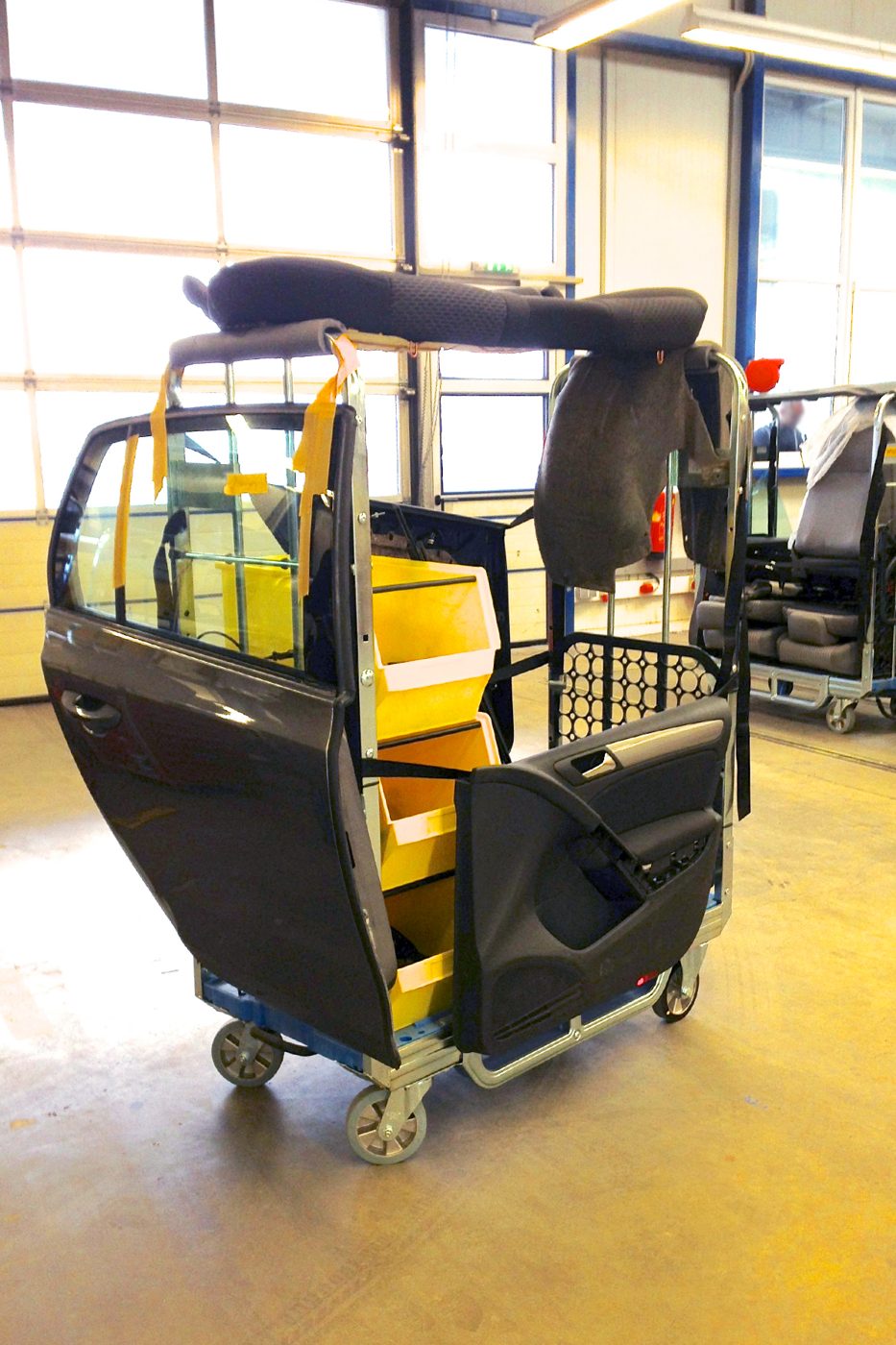

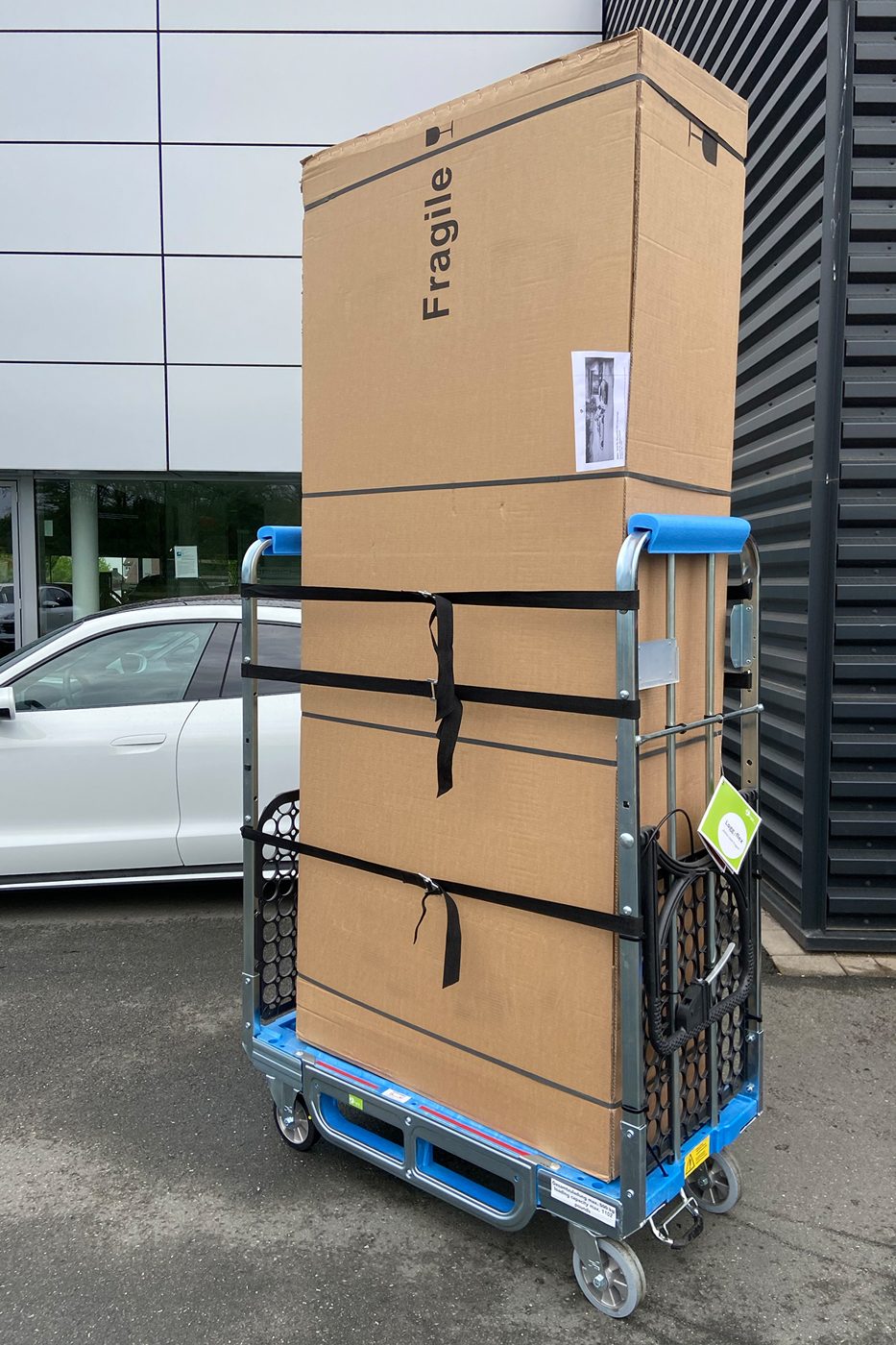

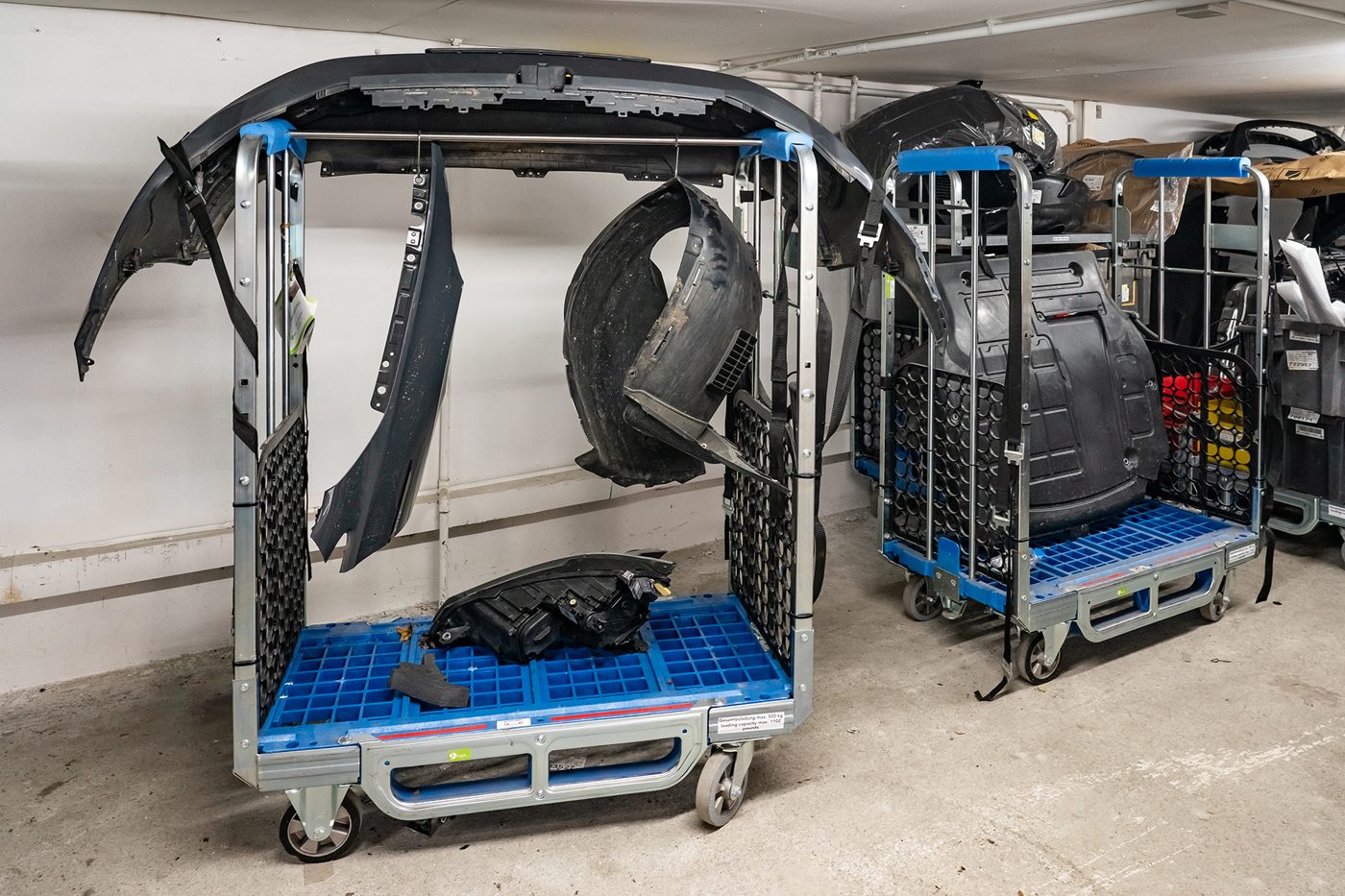

Collect and sort

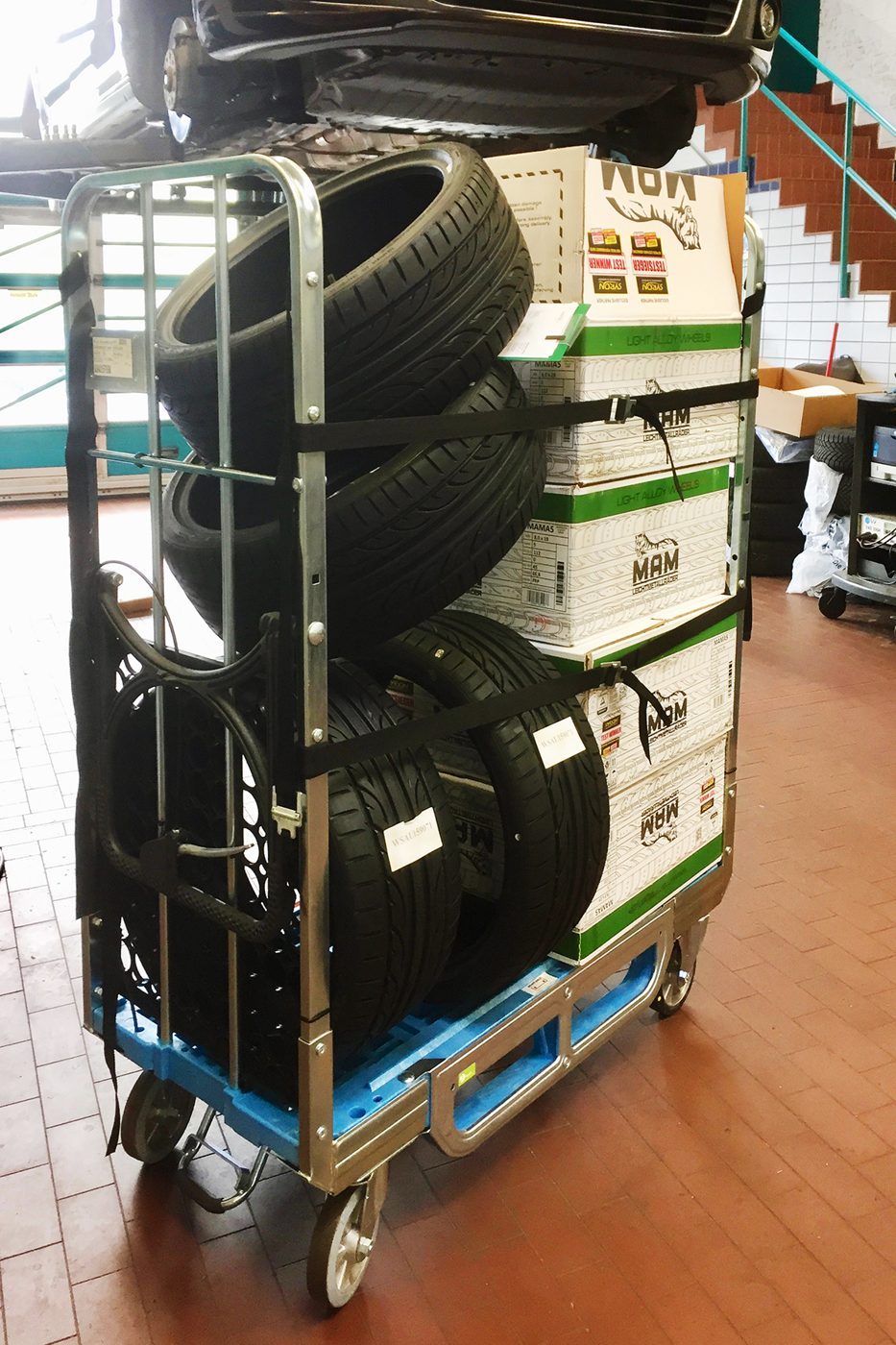

The Standard carries bulky items, high-stacked loads or entire collections of materials, such as sheet metal parts in the body shop or picked orders in the spare parts store. It turns almost on the spot and rolls quietly and stably. The castors have a low breakaway force: even fully loaded it starts moving easily, and nothing jams on rough floors. If the work is interrupted, simply push it aside.

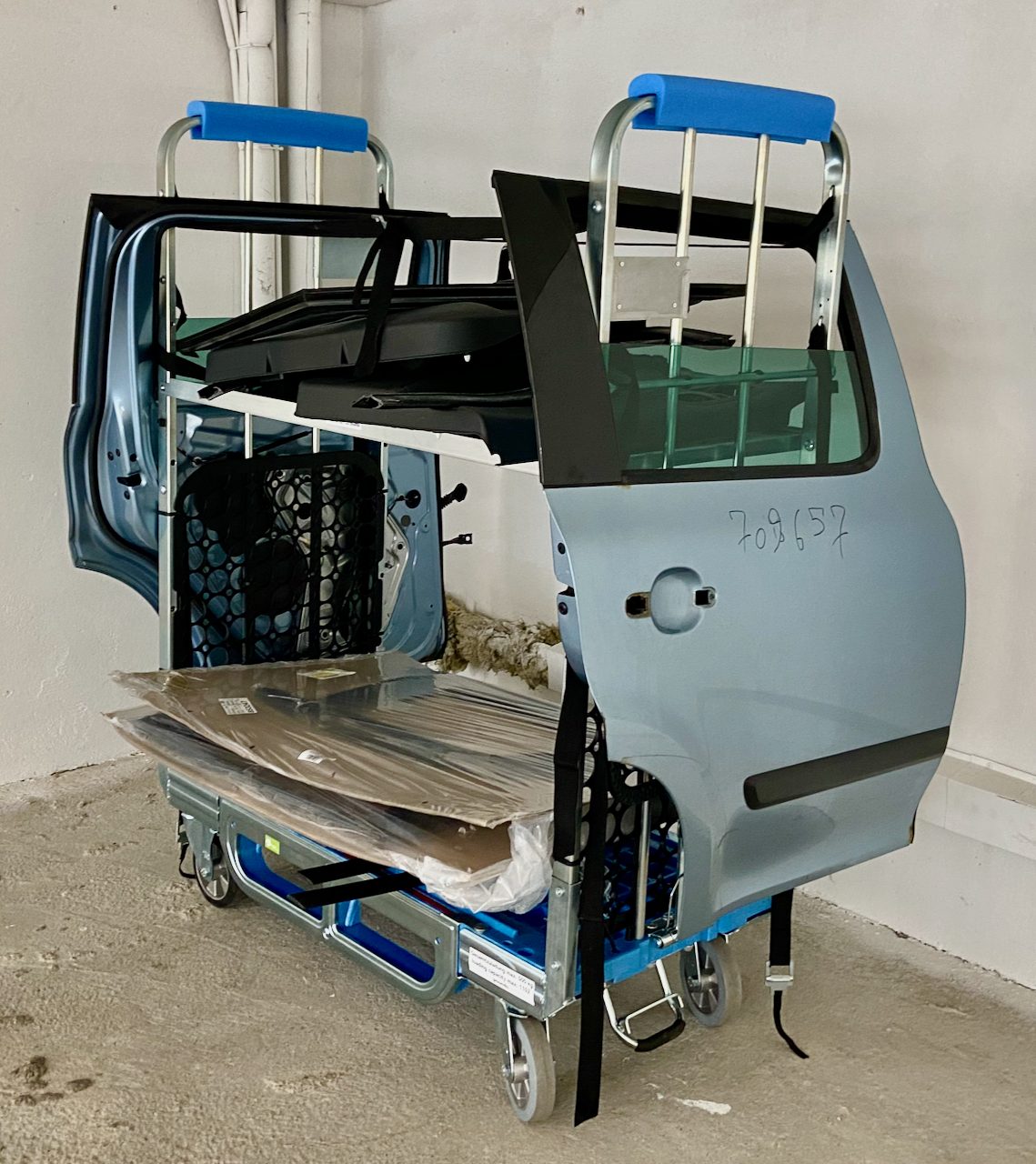

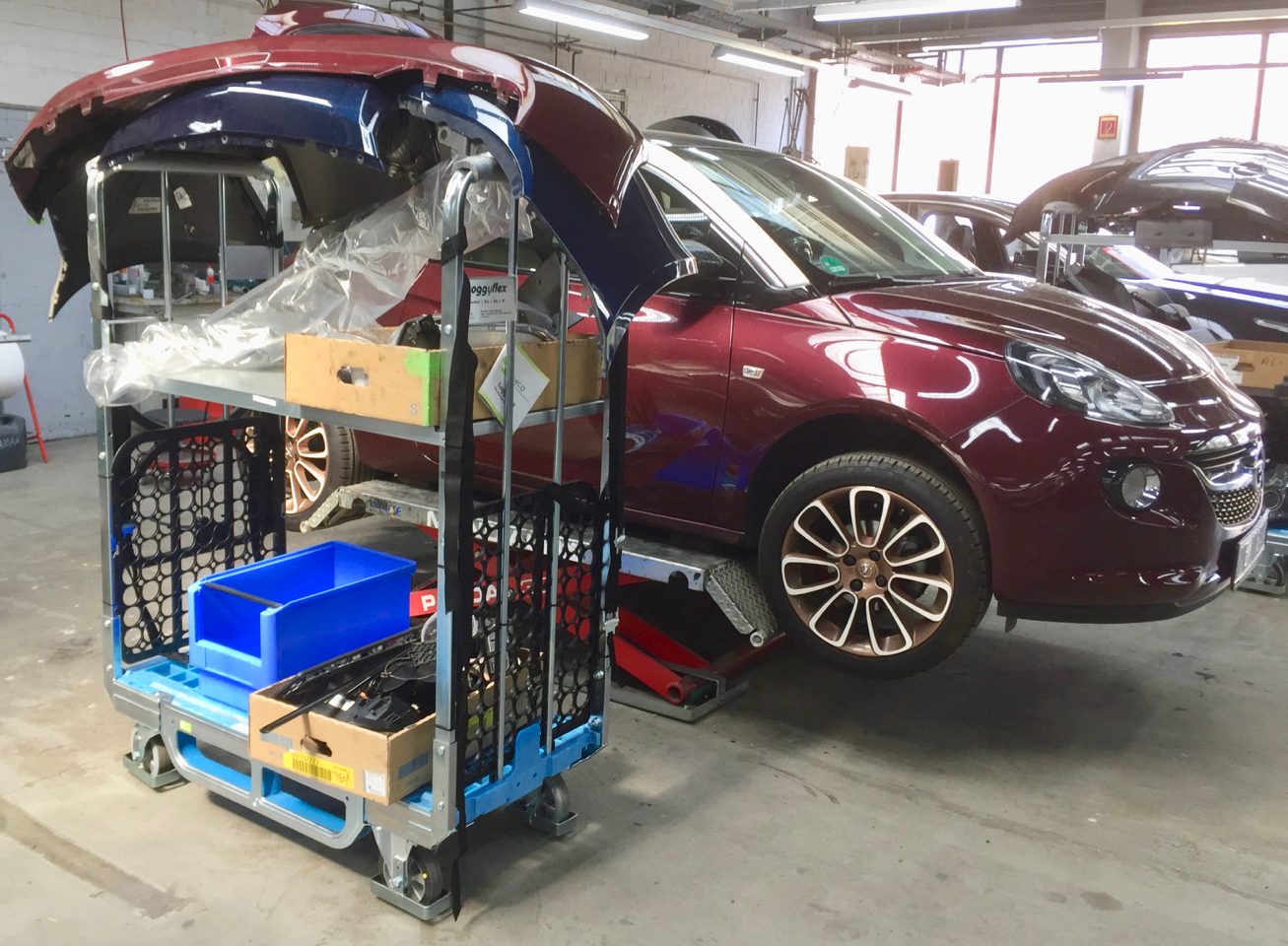

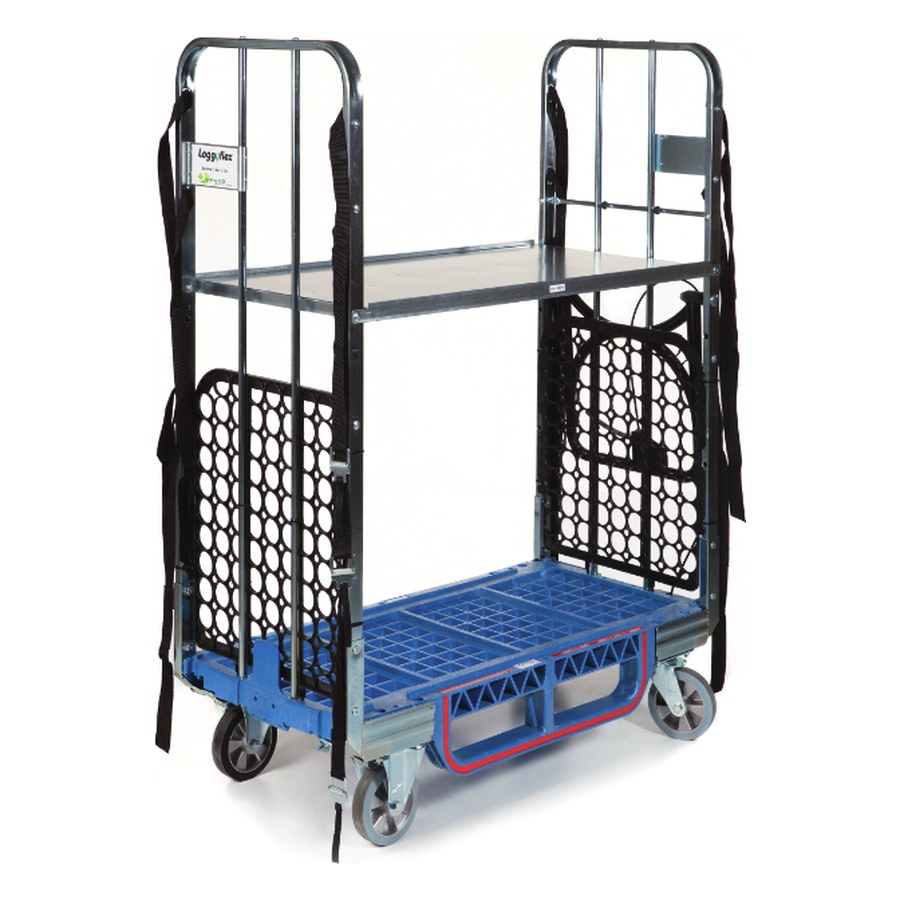

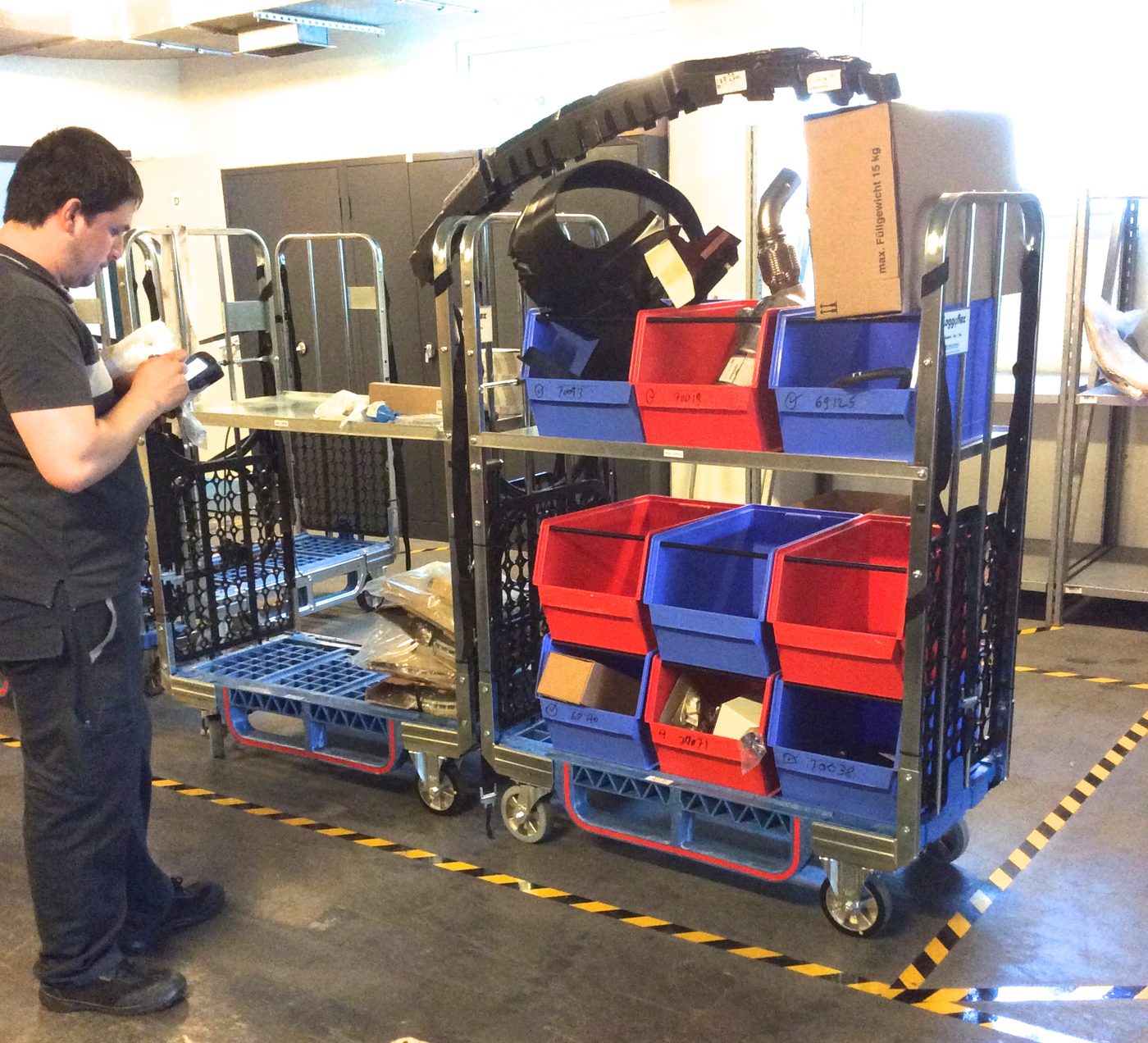

Loggyflex Duo: assembly trolley and mobile workbench
The Duo is a Standard with a magnetic metal intermediate shelf. This turns it into a shelf trolley and a mobile workbench with two levels. Load capacity: 300 kg on the plastic base, 100 kg on the intermediate shelf.
Loggyflex Duo assembly trolley
1,200 × 590 × 1,600 mm · 48 kg · 400 kg load capacity · 1 intermediate shelf
Good to know
Pairs well with: foam pad for sensitive parts, a second intermediate shelf (turns it into a Trio), roll-off guard for small parts and SoftTops as protective covers.
Intermediate shelf included
Magnetic, with the long sides folded upwards so that nothing rolls off. For self-assembly.
400 kg total load capacity
300 kg at the bottom, 100 kg on the intermediate shelf.
Handbrake and parking brake
Apply the brake and the trolley stays put, even when working on heavy parts.
6 integrated lashing straps
Secure bulky or delicate parts during transport.

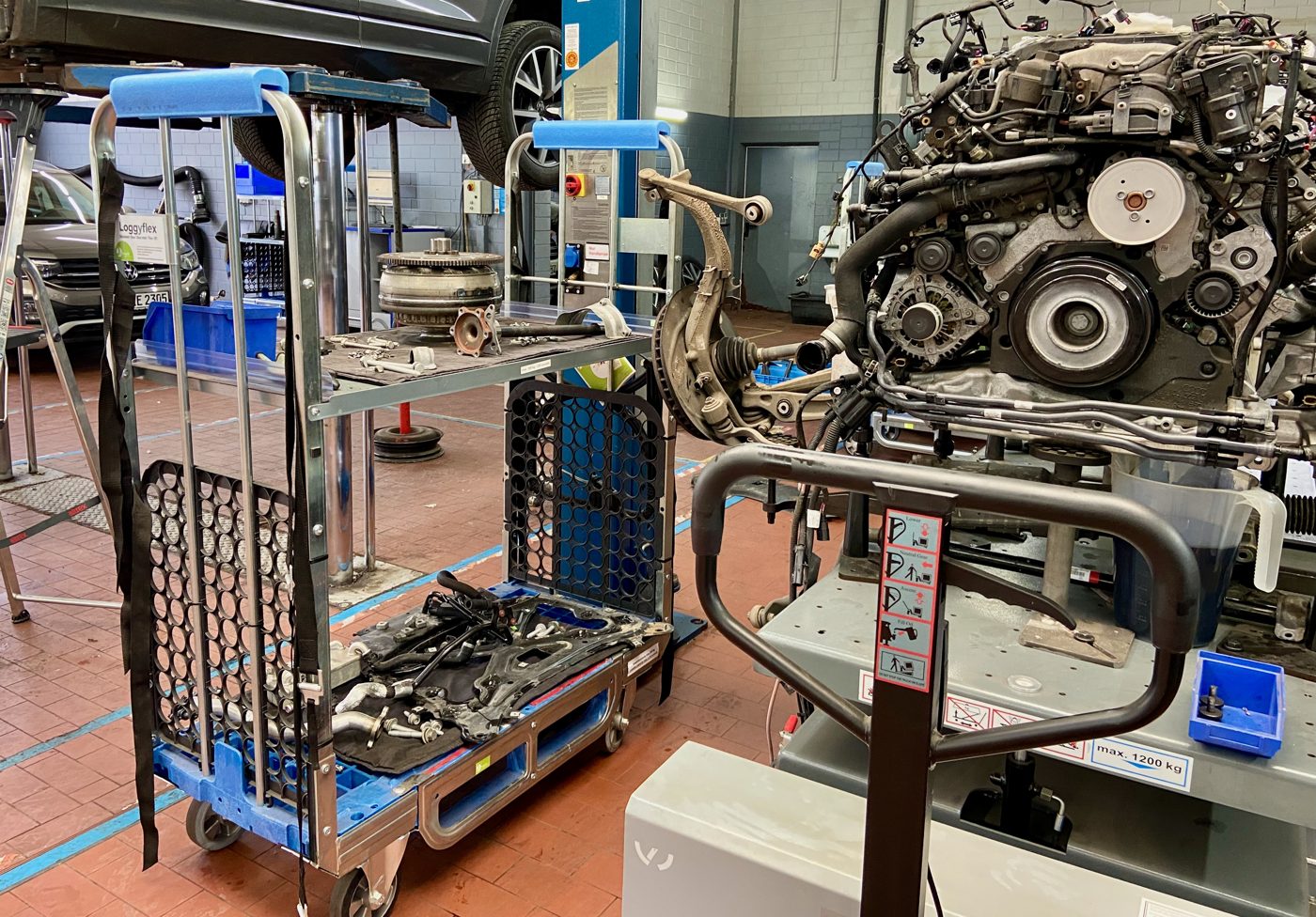

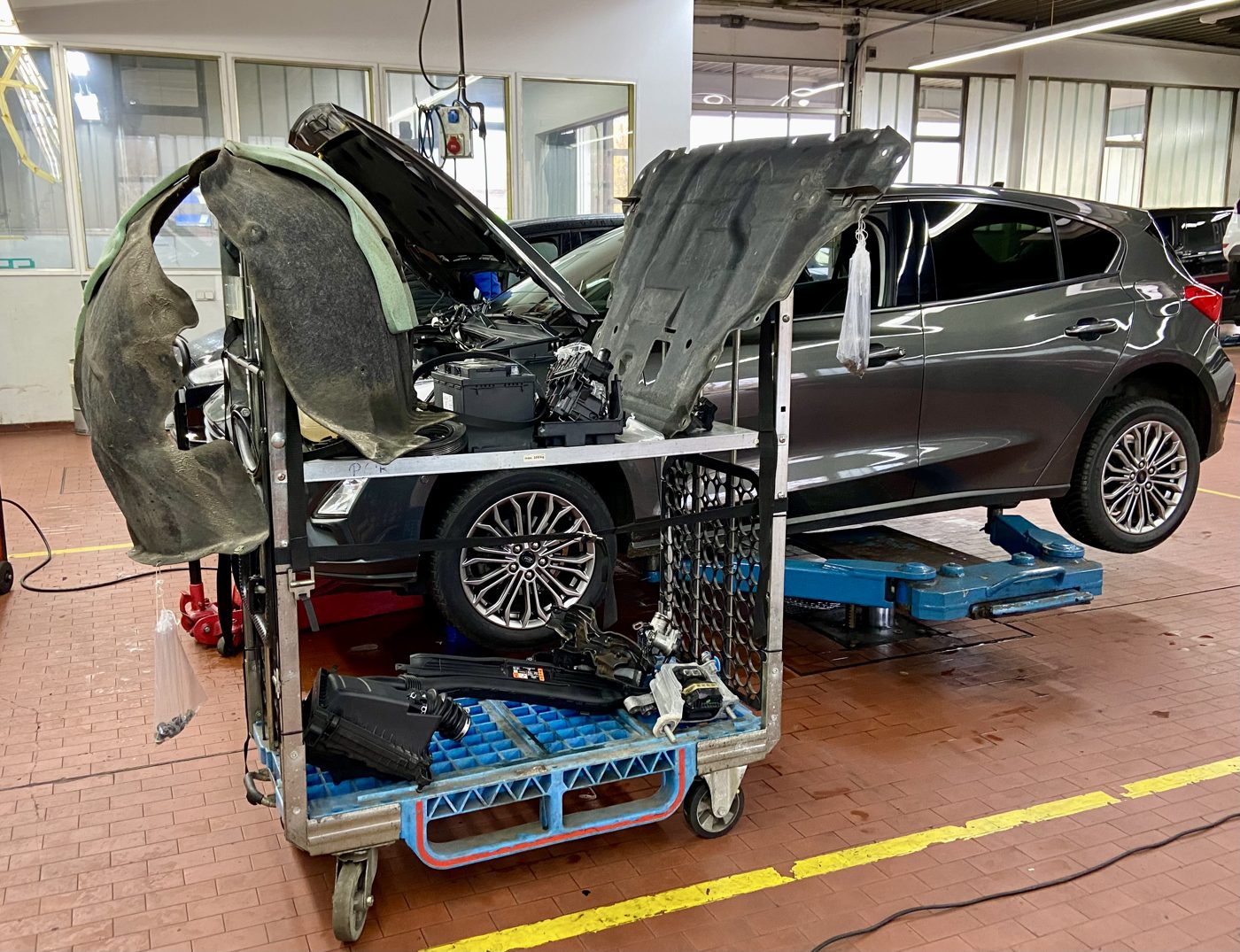

The mobile workbench
Wherever components weighing up to 100 kg need to be worked on at the right height, the Duo replaces the fixed workbench. It needs little space, stands securely with the parking brake applied and can simply be pushed away afterwards. Typical uses are removed seats, cylinder heads and gearboxes.

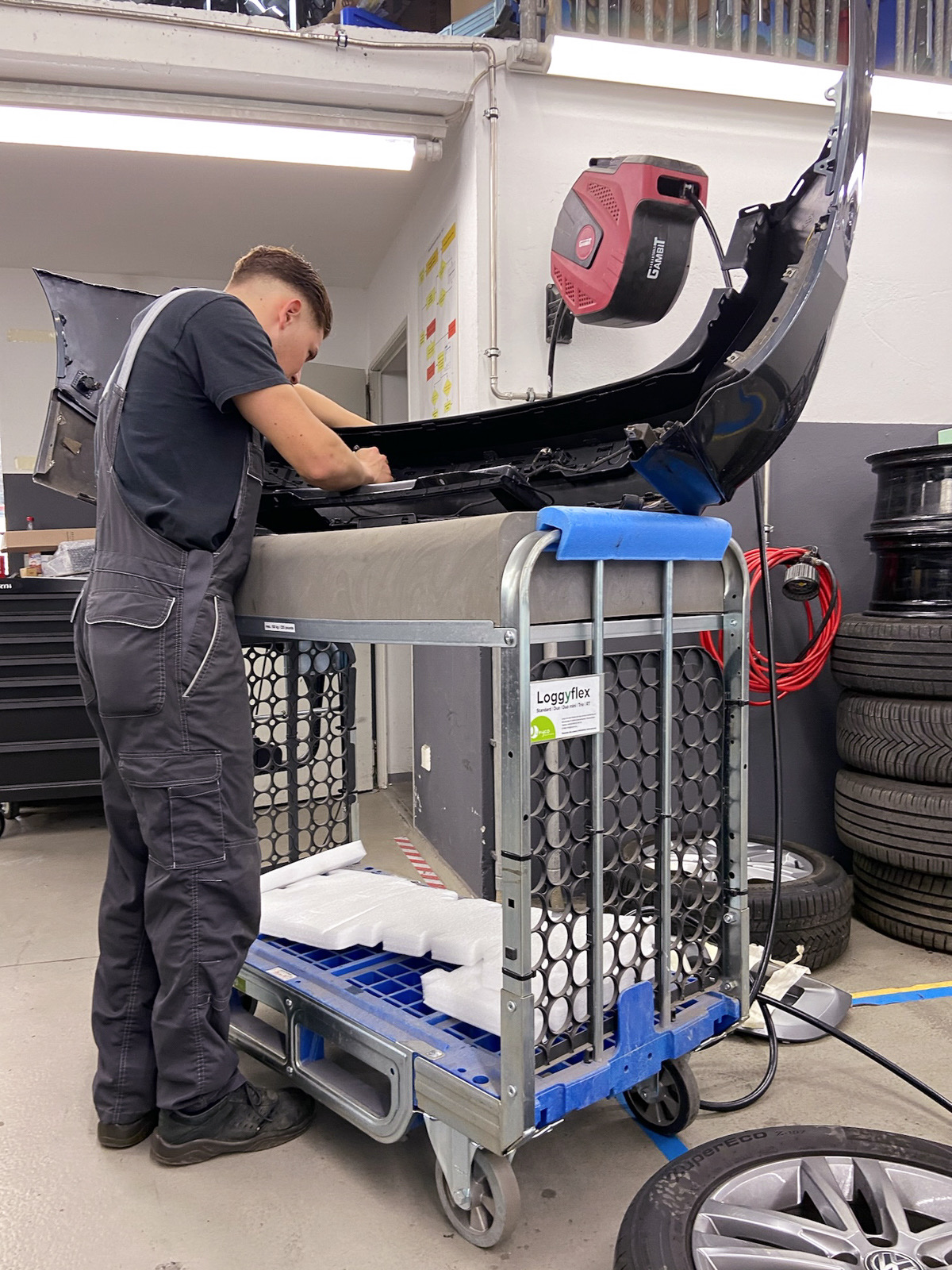

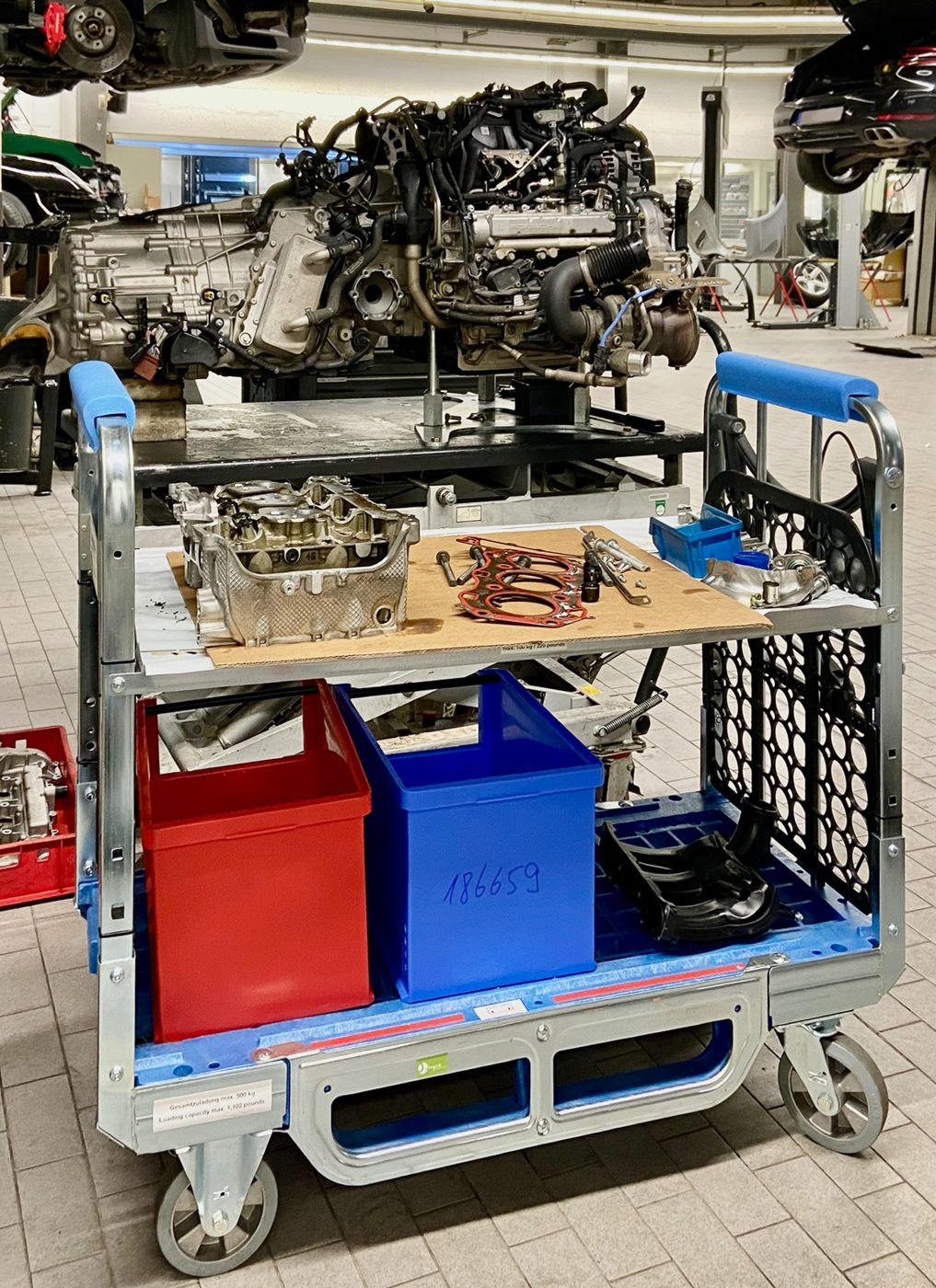

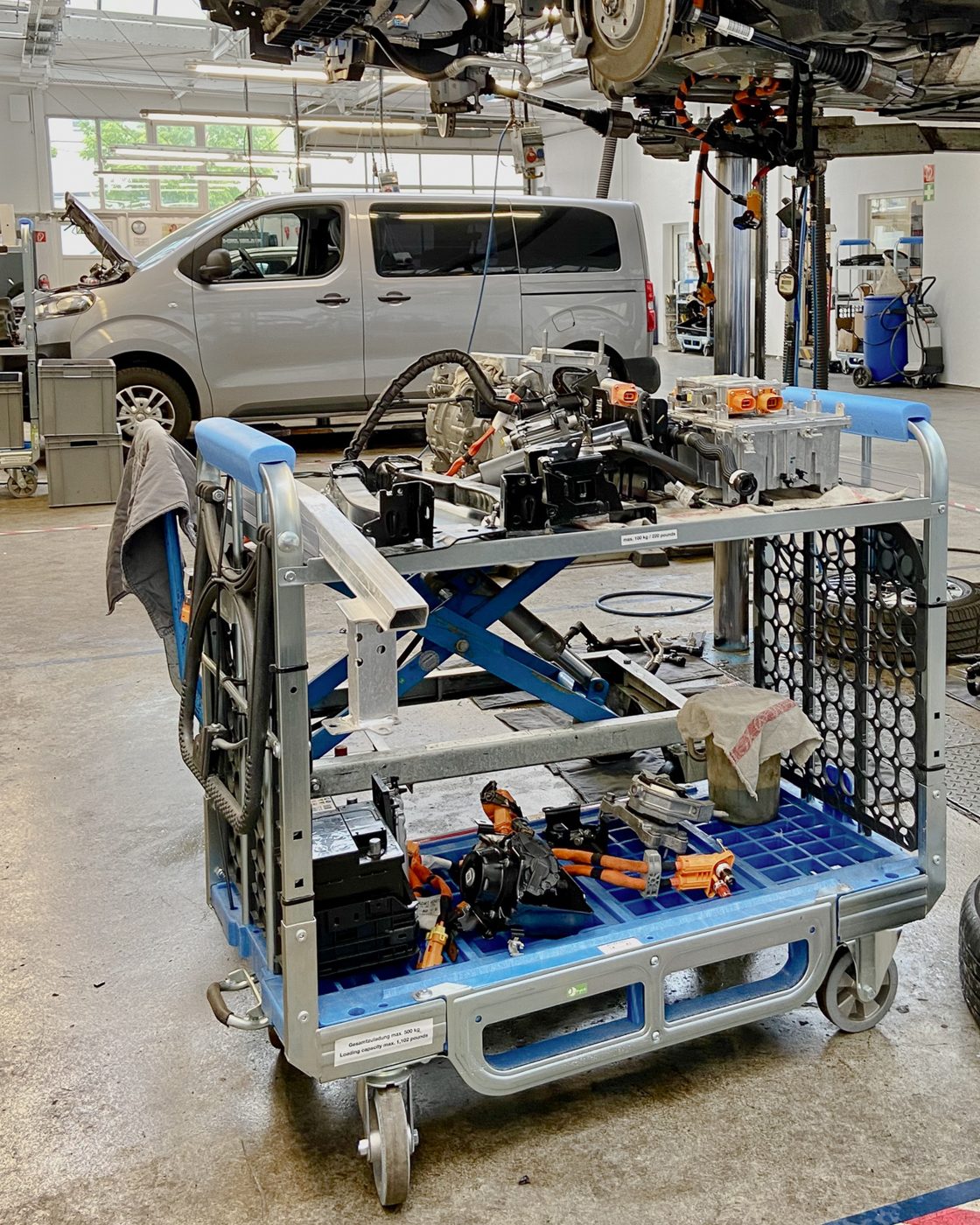

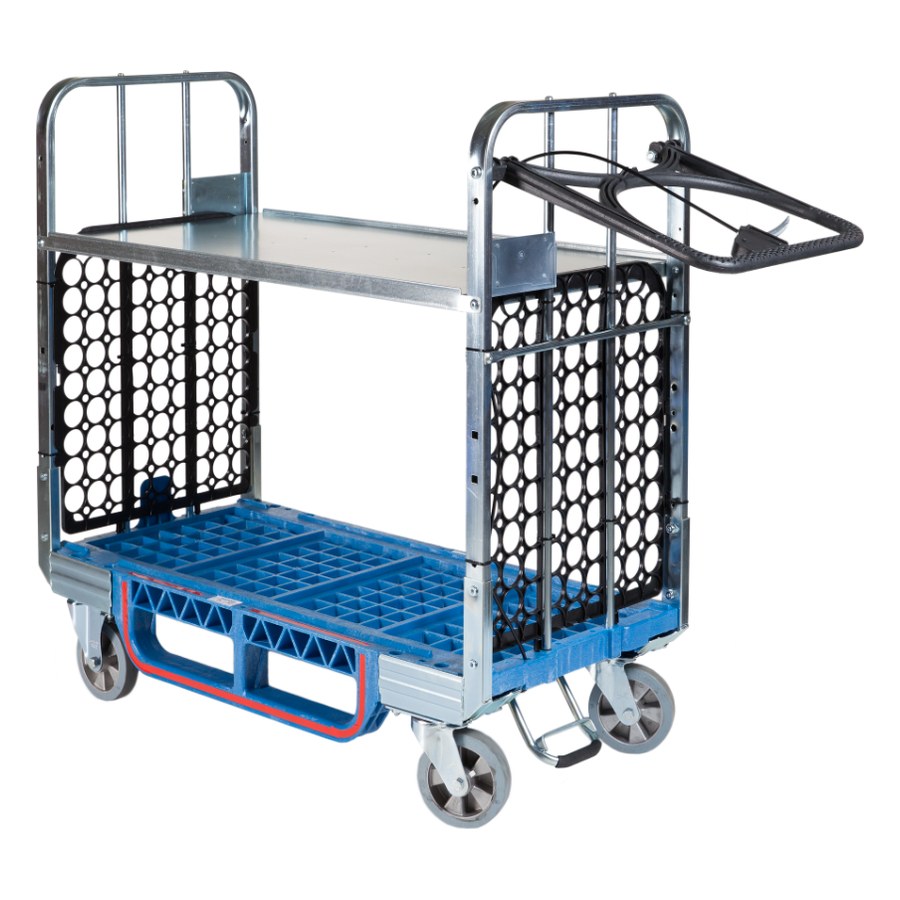

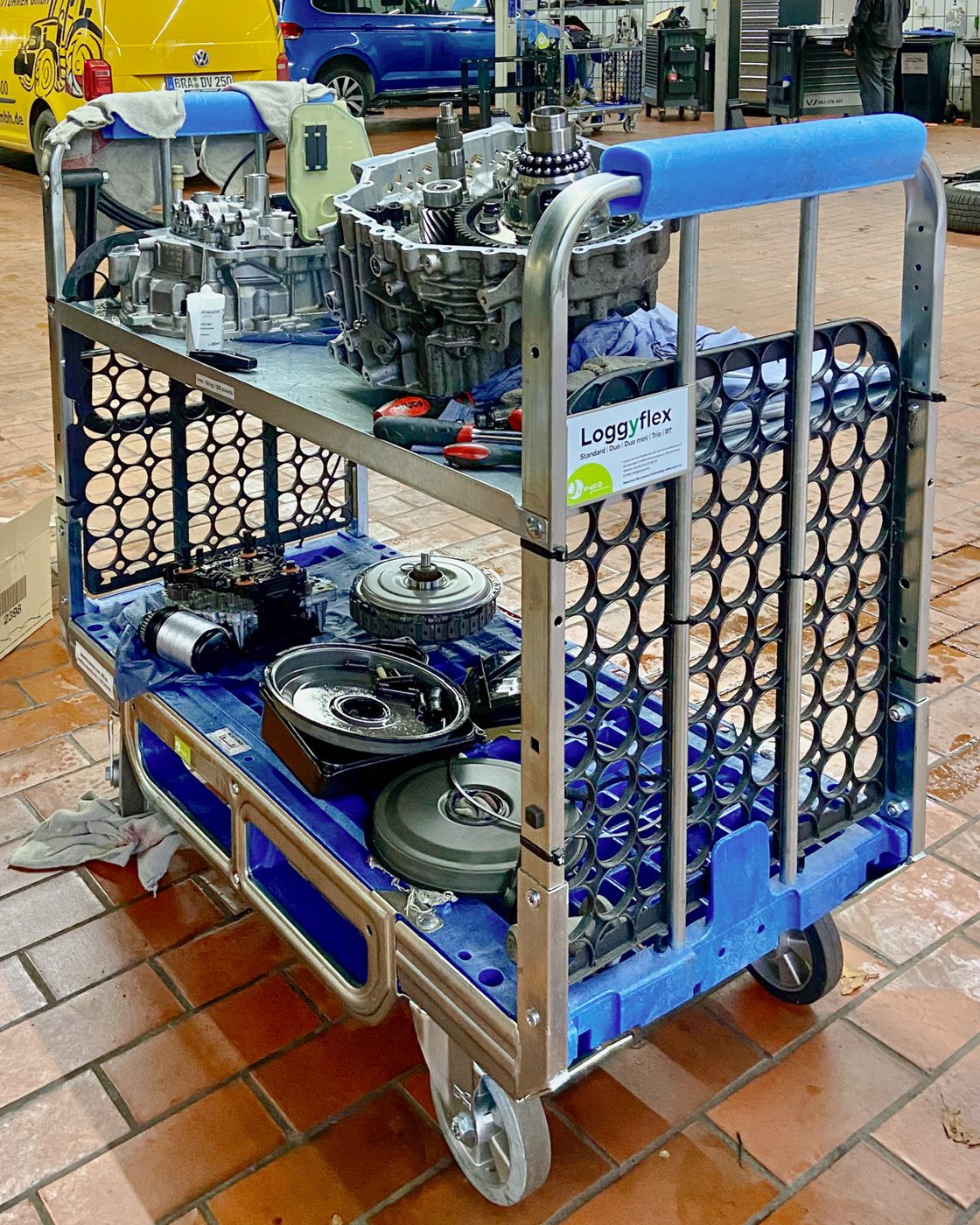

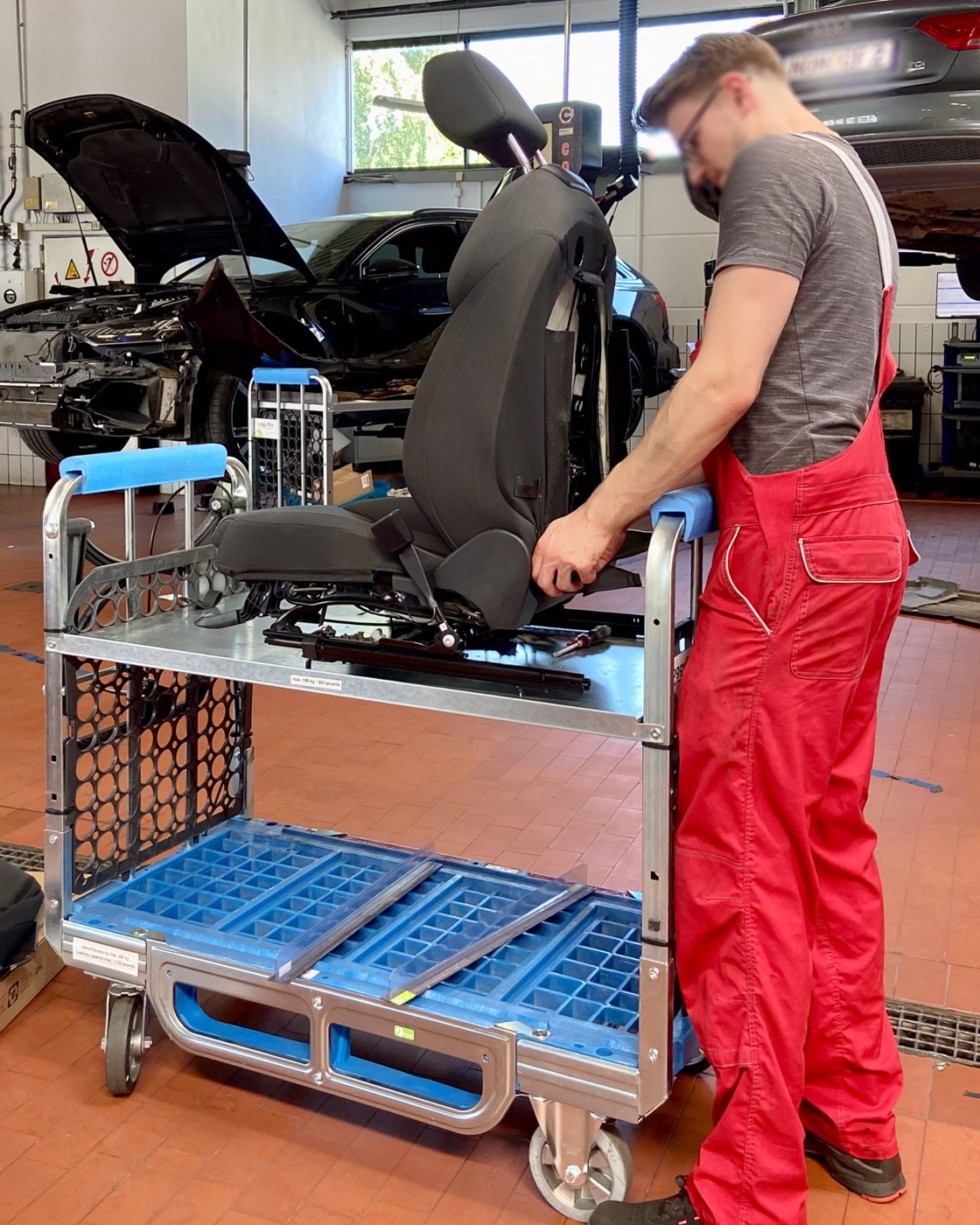

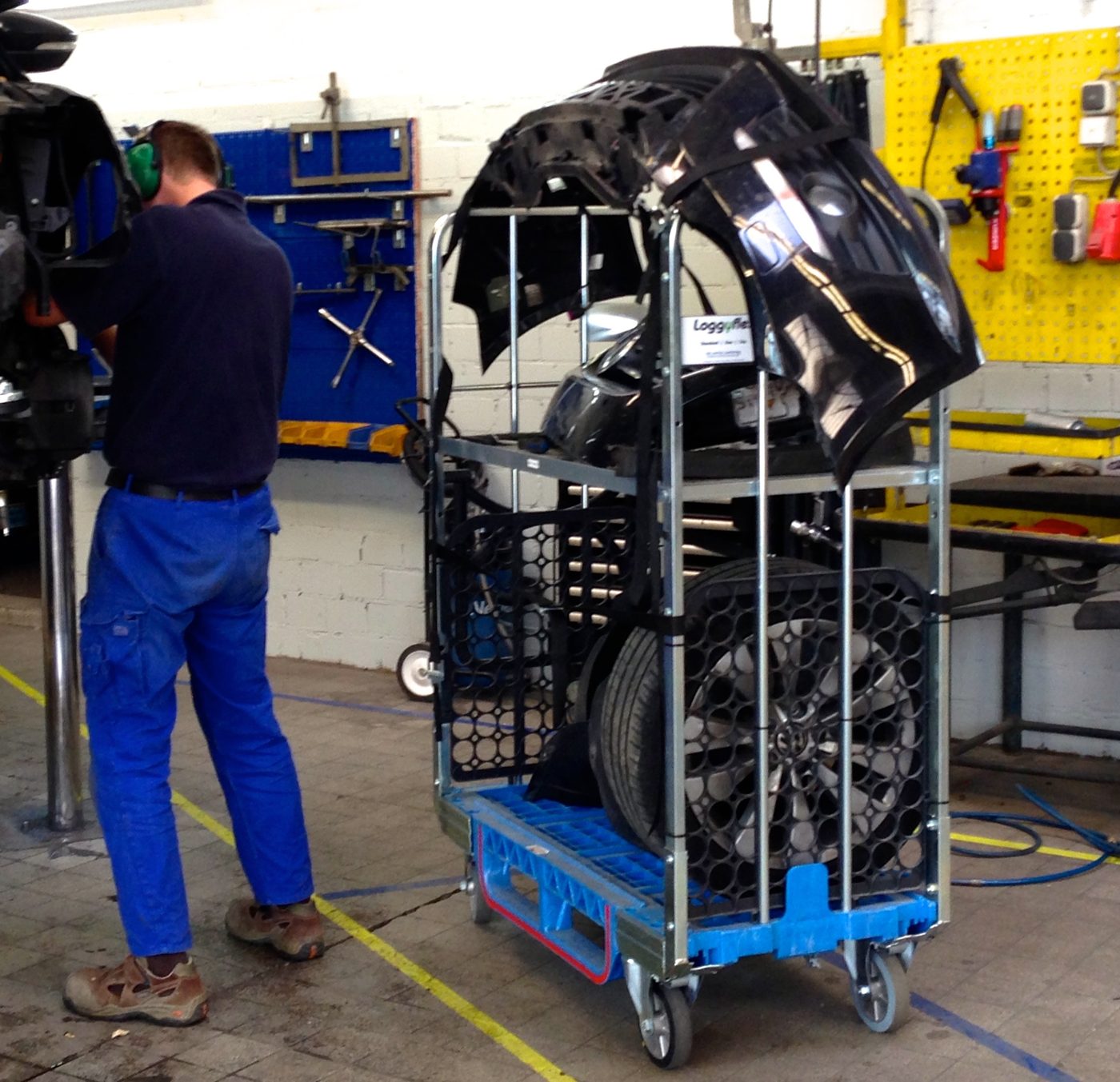

Loggyflex Duo mini: mobile workbench for body parts

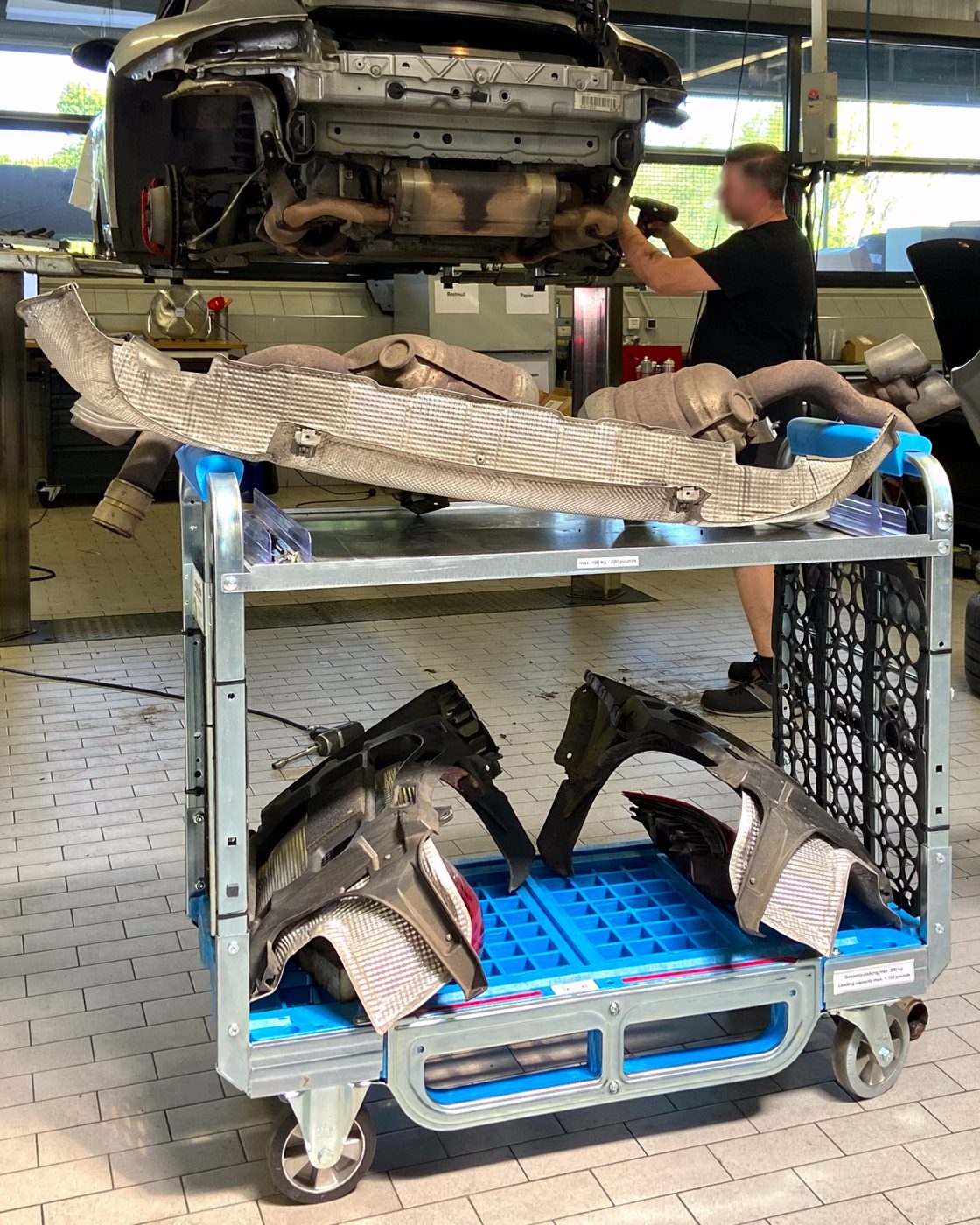

The Duo mini is the compact assembly helper for bumpers, windscreens and towbars. Its side beams are shorter than on the Duo. This means it can be loaded and unloaded from all four sides and gets through narrow aisles and between lifts. High-voltage components from electric vehicles can also be placed on it.
Loggyflex Duo mini assembly helper
1,200 × 590 × 1,100 mm · 44 kg · 300 kg + 100 kg load capacity · 1 intermediate shelf (3 heights)
Good to know
Pairs well with: foam pad for body parts, magnetic roll-off guard and SoftTops for the side frames.
Access from four sides
The side steel profiles are shorter than on the Duo. This helps in narrow aisles and between lifts.
Intermediate shelf at 3 heights
Magnetic metal shelf for 100 kg with anti-roll edges on the long sides, for self-assembly at three heights.
Handbrake and foot-operated parking brake
The handbrake in the handle helps on downhill slopes, while the foot-operated parking brake holds the trolley in place.
300 kg on the plastic base
Plus 100 kg on the intermediate shelf, on the same chassis as the larger models.
Manoeuvrable in everyday workshop use
The Duo mini fits between lifts and through narrow aisles where larger trolleys would get in the way. Despite its compact design, it offers plenty of loading space. It is delivered pre-assembled and film-wrapped; you only fit the intermediate shelf yourself at the height you want.

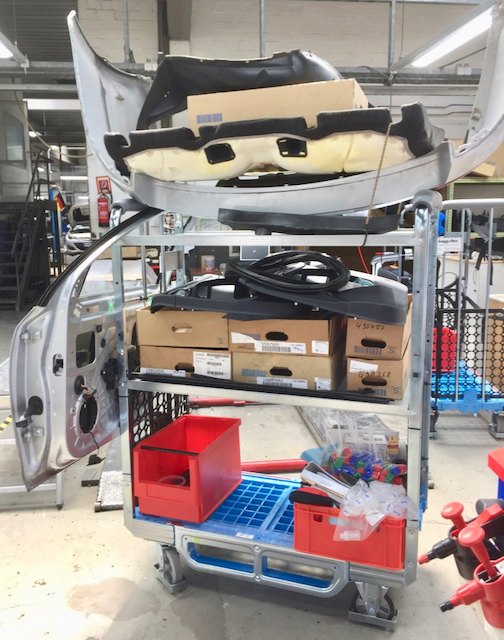

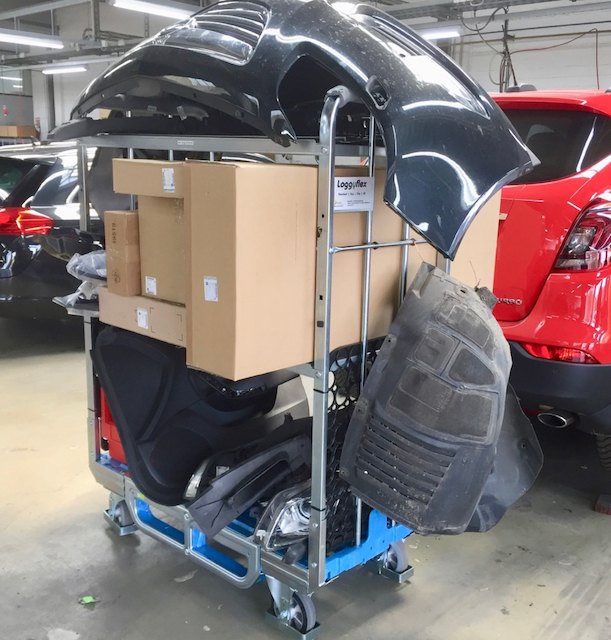

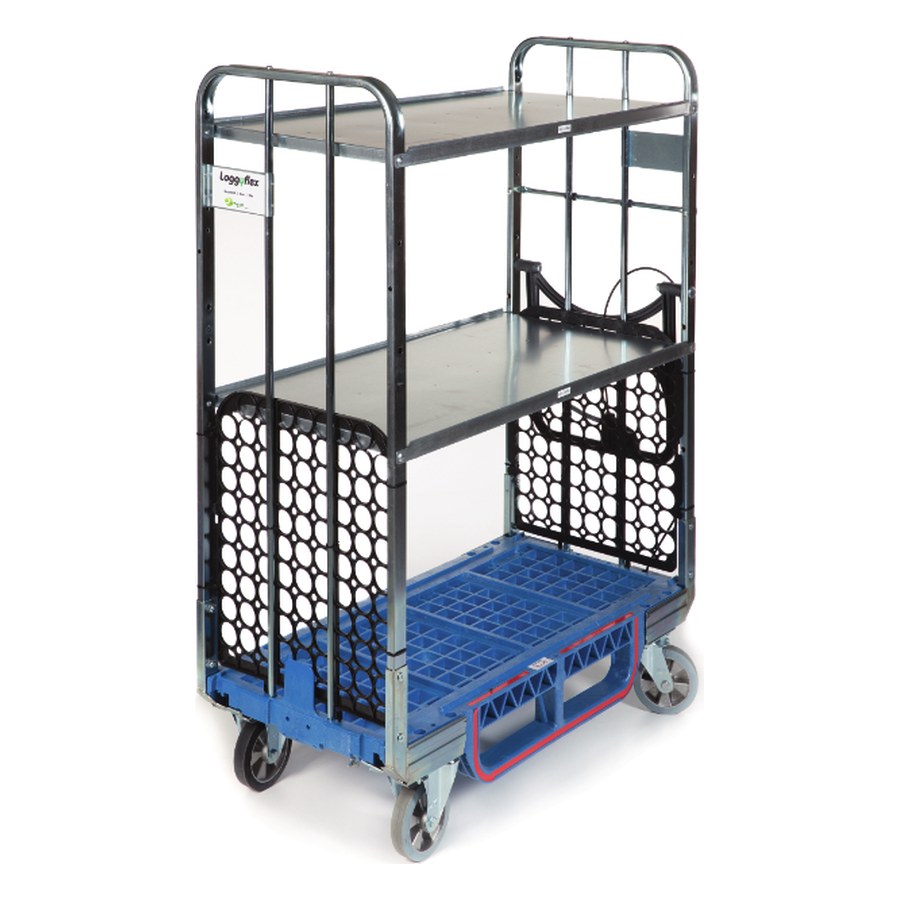

Loggyflex Trio: trolley with three levels
The Trio is the shelf trolley with two magnetic intermediate shelves and therefore three levels. It offers the largest storage area in the family and carries up to 500 kg: 300 kg on the plastic base and 100 kg on each intermediate shelf.
Loggyflex Trio assembly trolley
1,200 × 590 × 1,600 mm · 54 kg · 500 kg load capacity · 2 intermediate shelves
Good to know
Pairs well with: foam pad for sensitive parts, roll-off guard for small parts and SoftTops as protective covers.
2 intermediate shelves included
Magnetic and for self-assembly.
500 kg total load capacity
300 kg at the bottom, 100 kg on each of the two intermediate shelves.
Handbrake and parking brake
Safe on the move and safe at a standstill, even when fully loaded.
Forklift-compatible
With forklift pockets, so it can be lifted fully loaded into a rack or to another storage level.

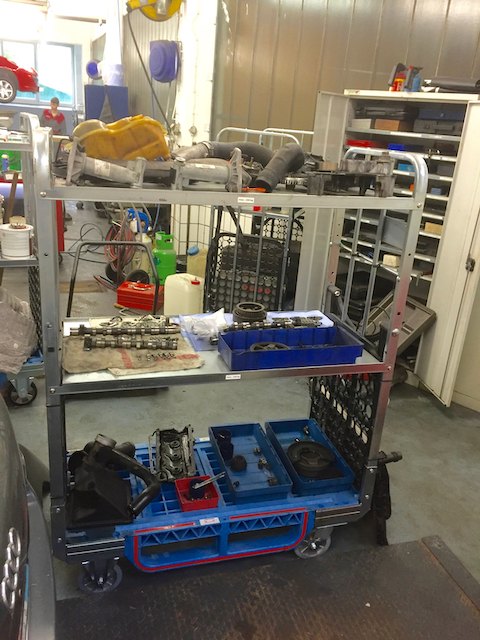

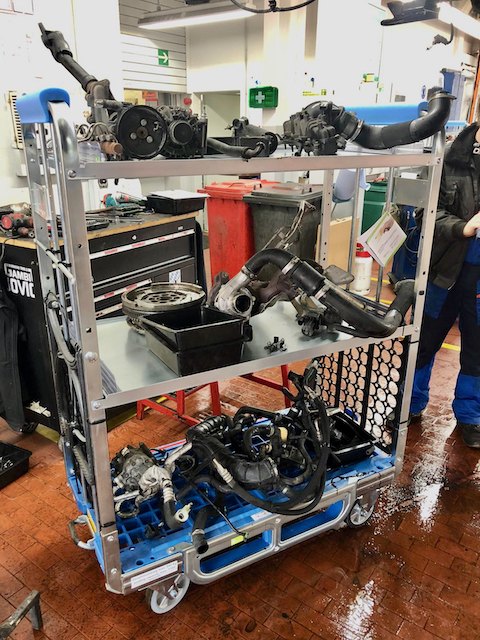

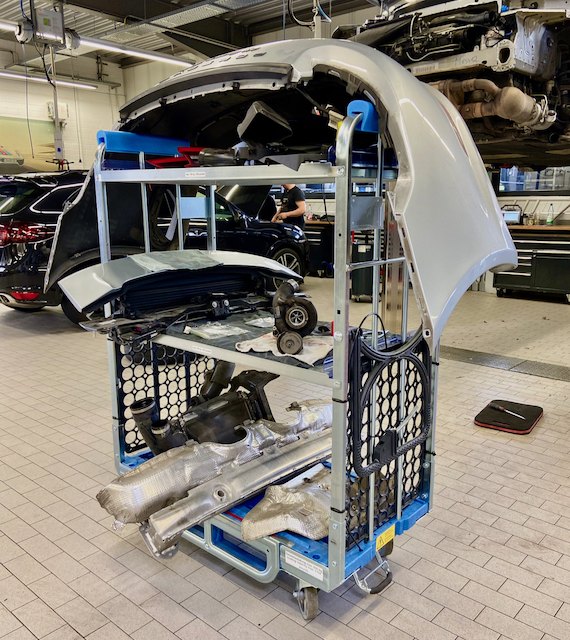

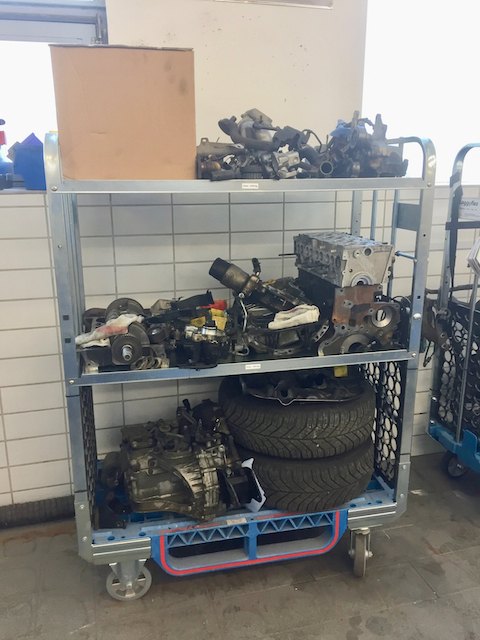

Storage on three levels
When removing an engine, the Trio sorts the parts by level: engine cover and trim parts at the bottom, alternator, manifold and similar parts in the middle, bolts, camshaft and small parts at the top. That way the mechanic keeps track of everything.

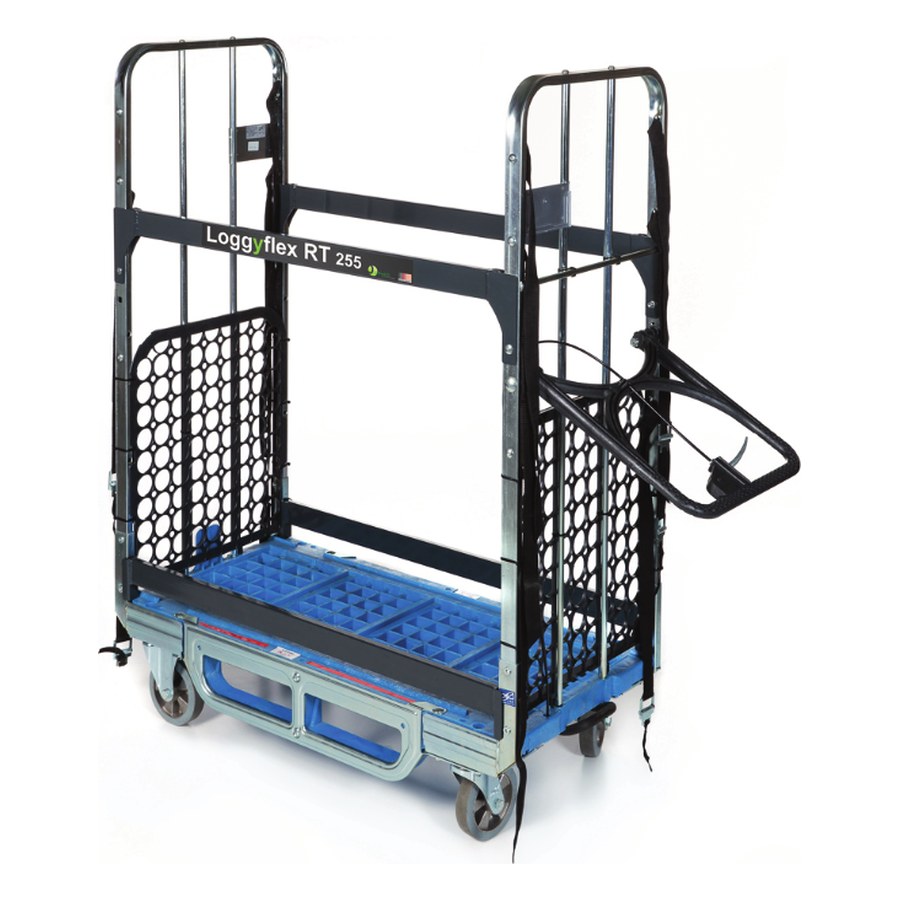

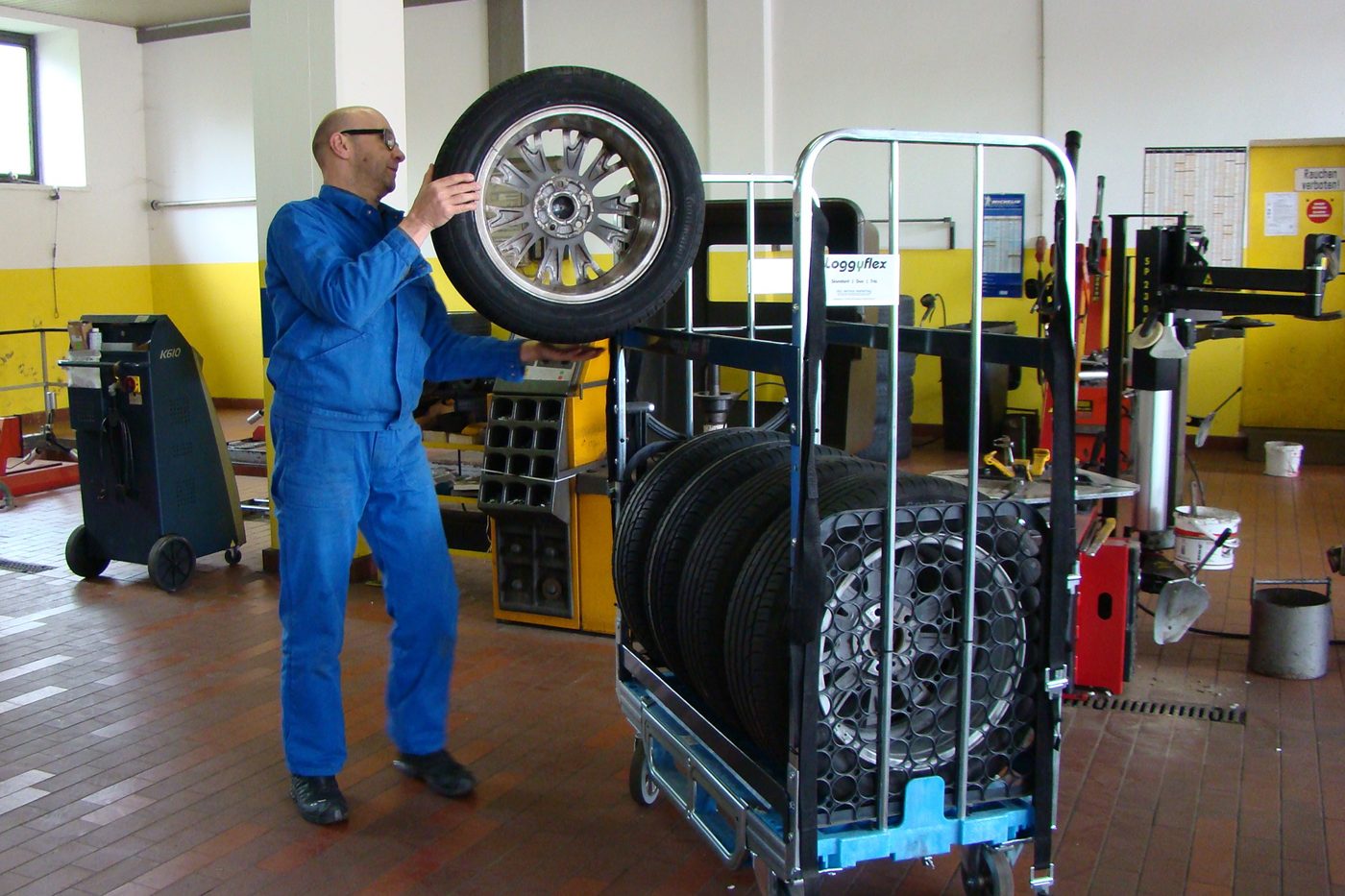

Loggyflex RT 255: tyre trolley for 8 wheels
The Loggyflex RT 255 is the tyre trolley and wheel trolley for wheel changes: a Standard with the RT conversion kit. It holds two sets of wheels: 8 wheels with a tyre width of up to 255 mm or 10 tyres up to 195 mm, for tyre sizes up to 22 inches. This lets you prepare, store and retrieve sets of wheels and make your tyre storage mobile.
Loggyflex RT 255 tyre trolley
1,200 × 590 × 1,600 mm · 60 kg · 260 kg load capacity · price per trolley in a set of 4 (€4,100)
All details on the RT 255 →Good to know
Everything about the tyre trolley – details, videos and questions: Loggyflex RT 255 tyre trolley. Pairs well with: coupling and drawbar set and SoftTops.
Two sets of wheels per trolley
Two levels, 260 kg load capacity, ‘Store/Retrieve’ magnetic labels included.

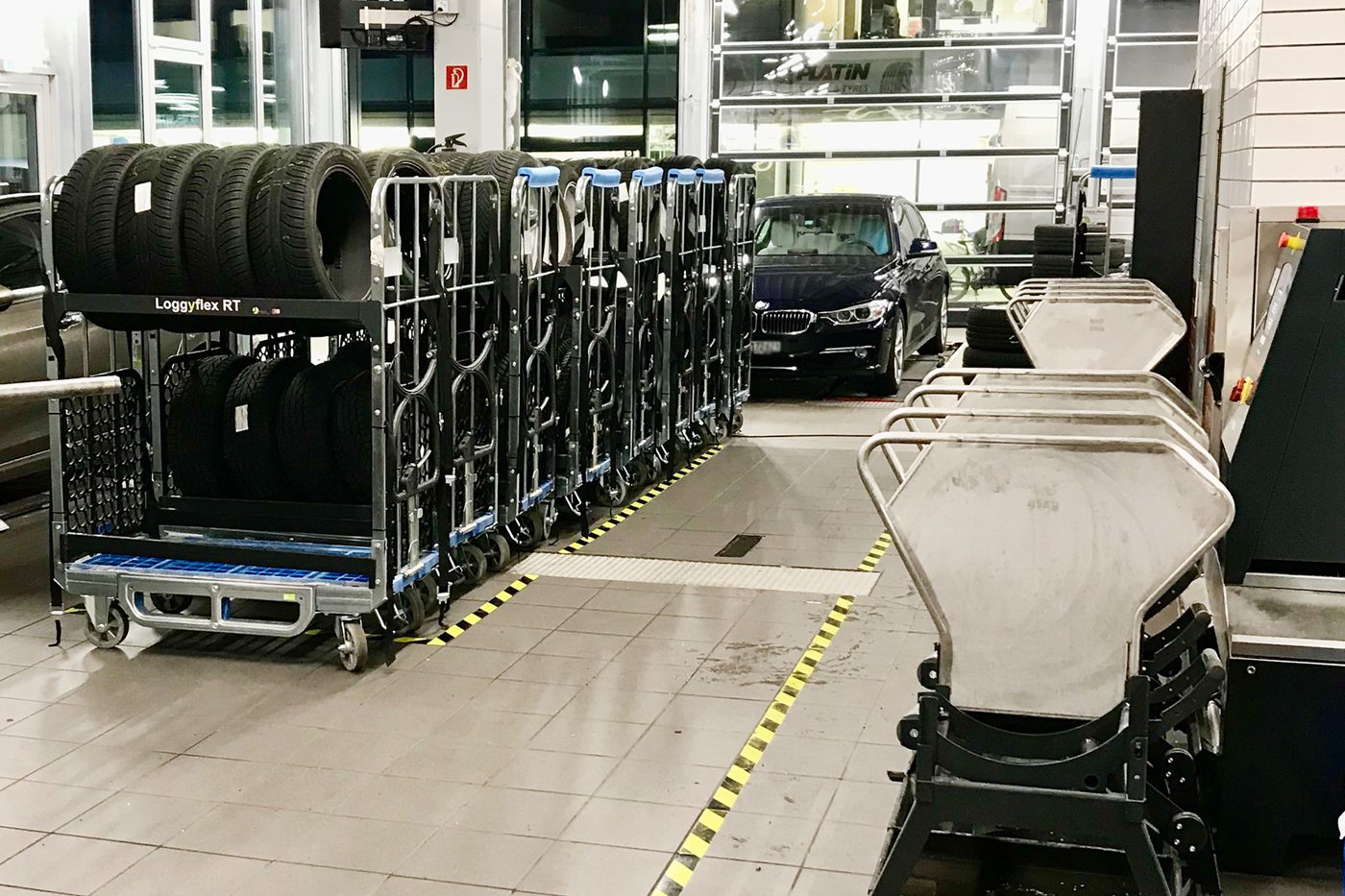

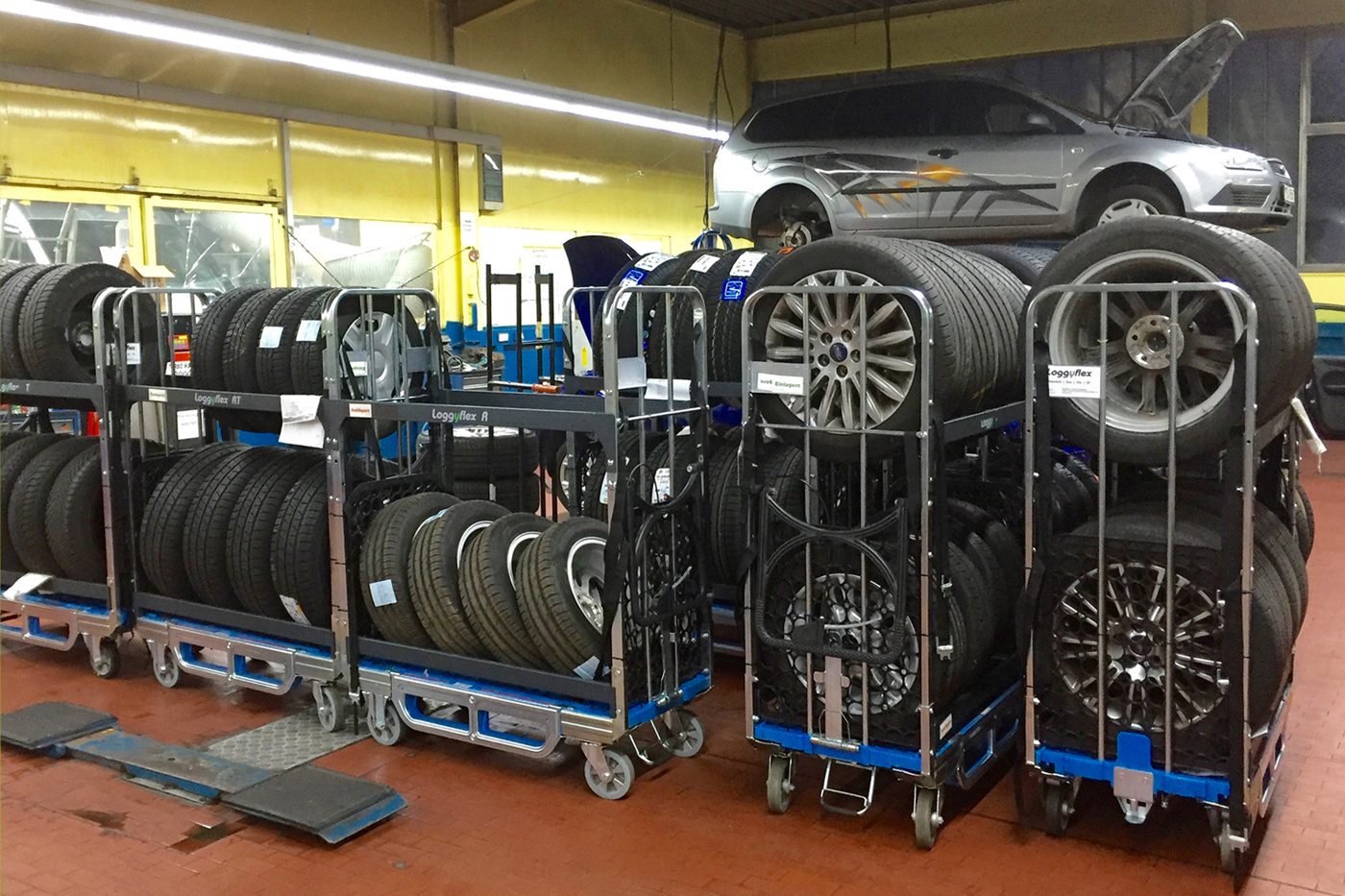

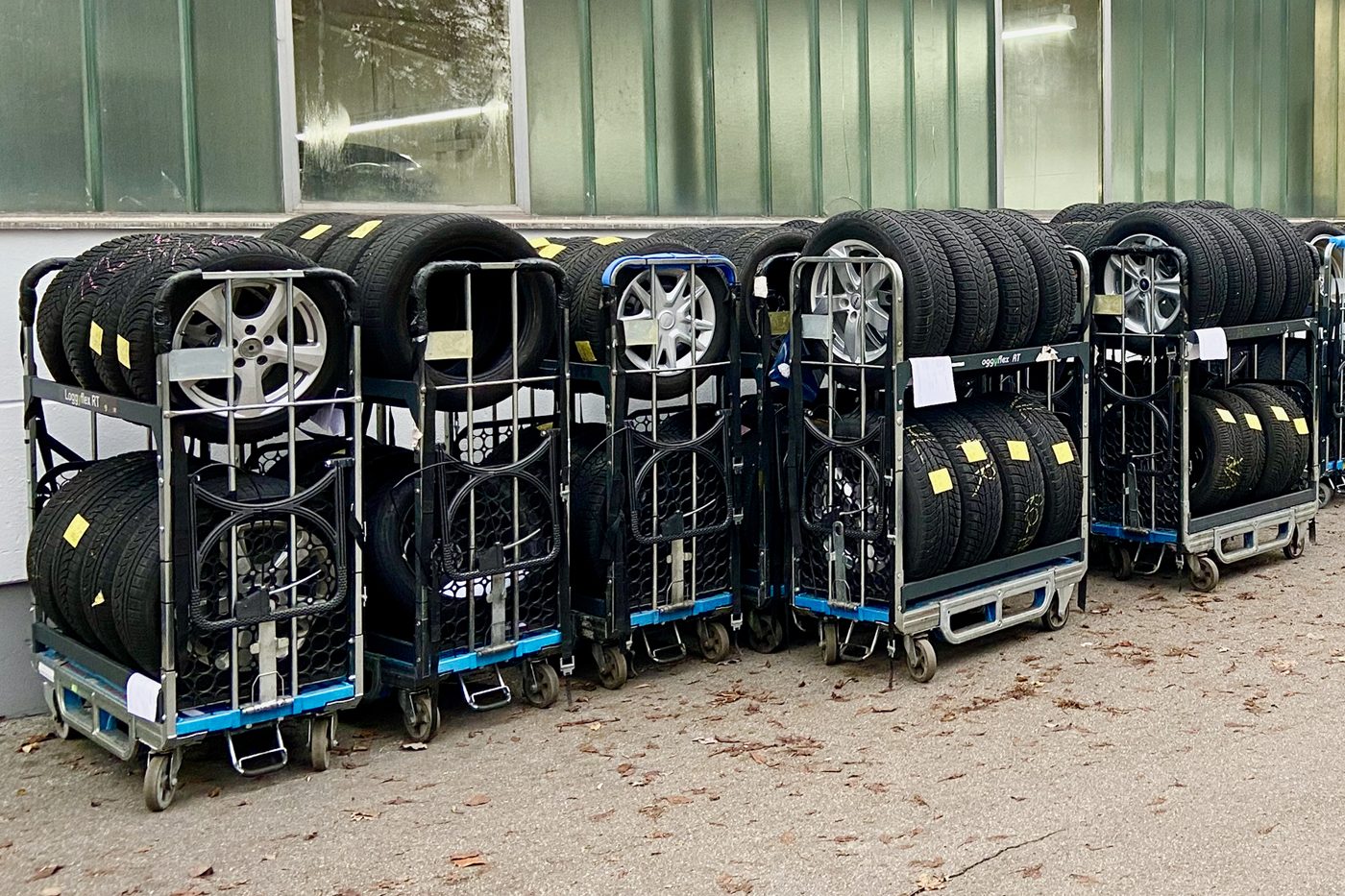

20 sets of wheels on around 8 m²
Ten trolleys instead of fixed stacks of tyres, and every set goes straight to the vehicle.

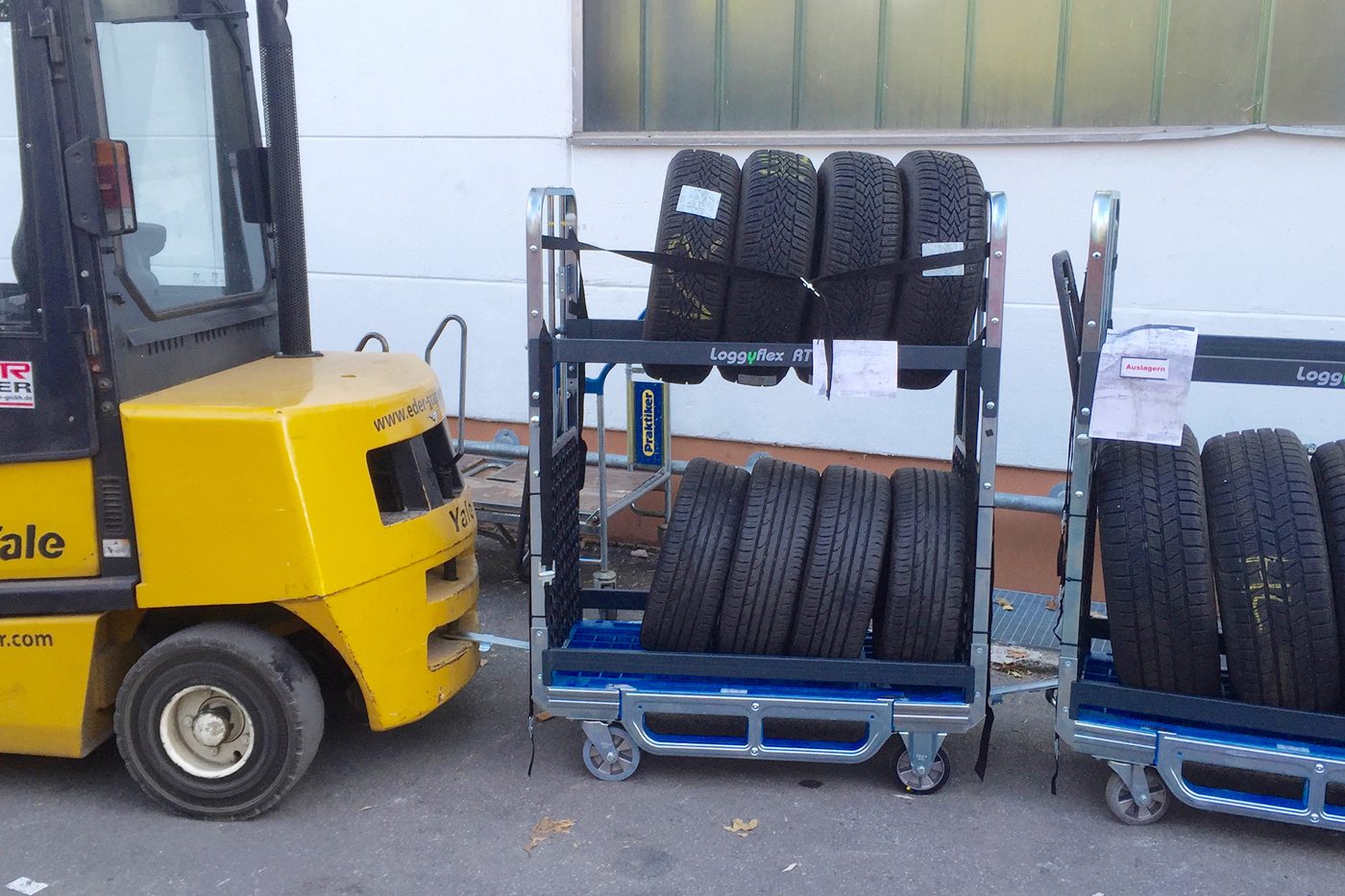

Couples up to 10 trolleys
Move 20 sets of wheels in one train with the coupling and drawbar kit.
Convertible and expandable
Back to a Standard trolley outside the season, or a mobile workbench like the Duo or Trio with an intermediate shelf.
Sets of wheels ready at the vehicle
Instead of space-consuming stacks of tyres, the sets of wheels stand ready and prepared on trolleys. For fitting, the trolley goes straight to the vehicle, and the removed wheels go back onto the same trolley.

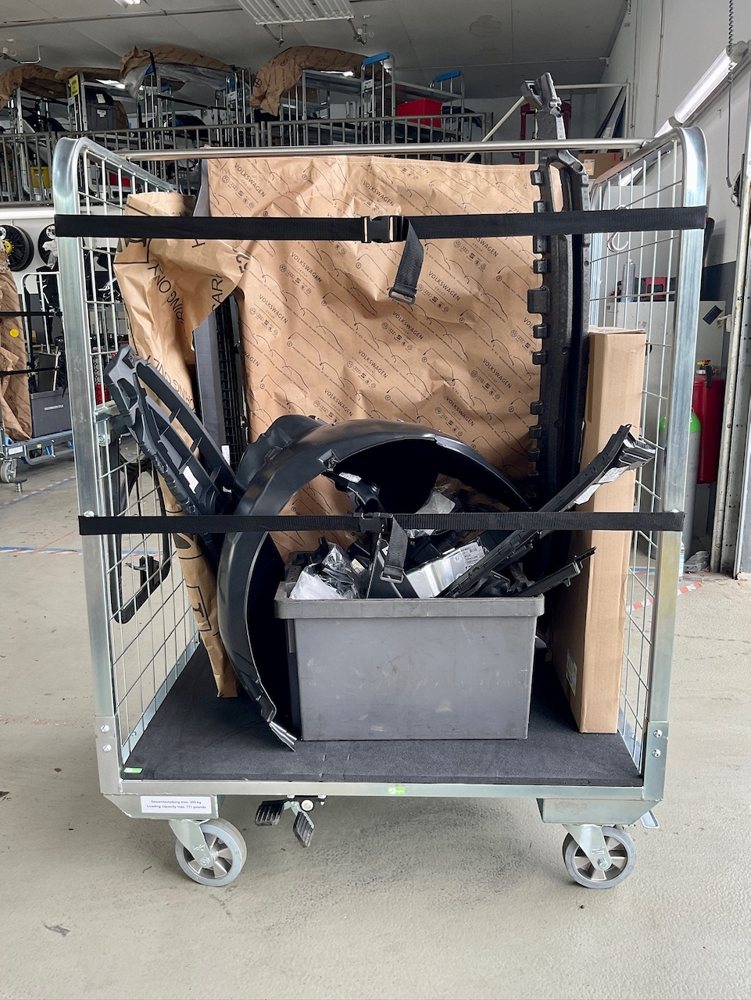

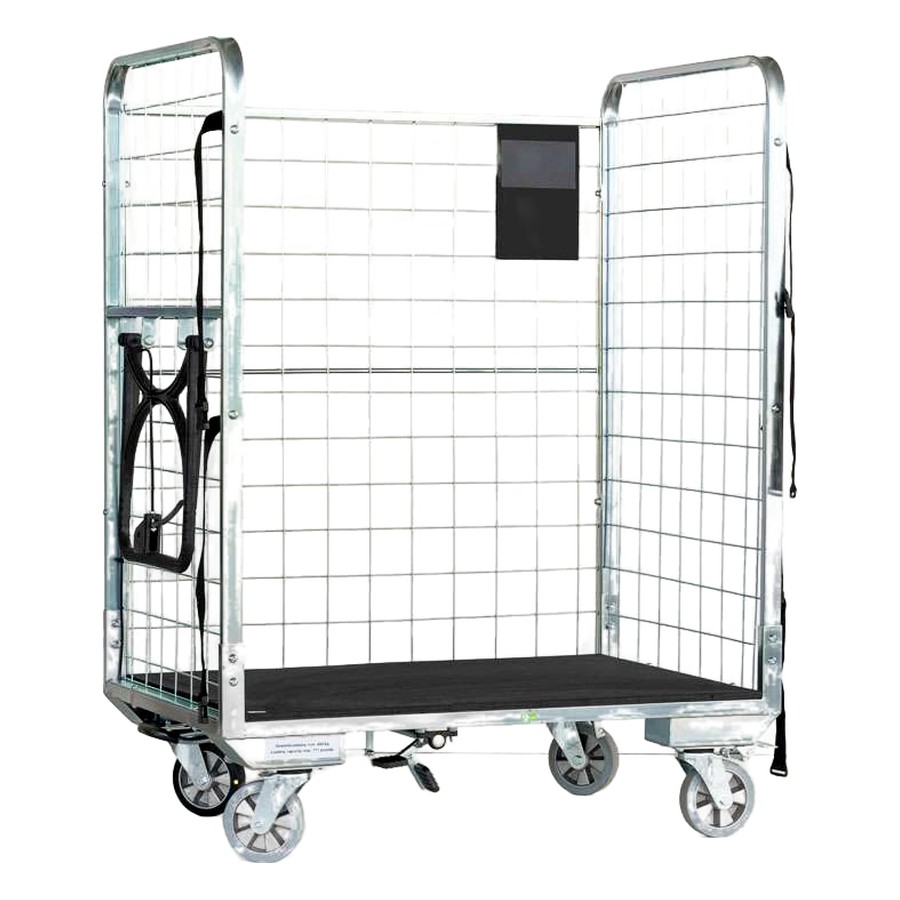

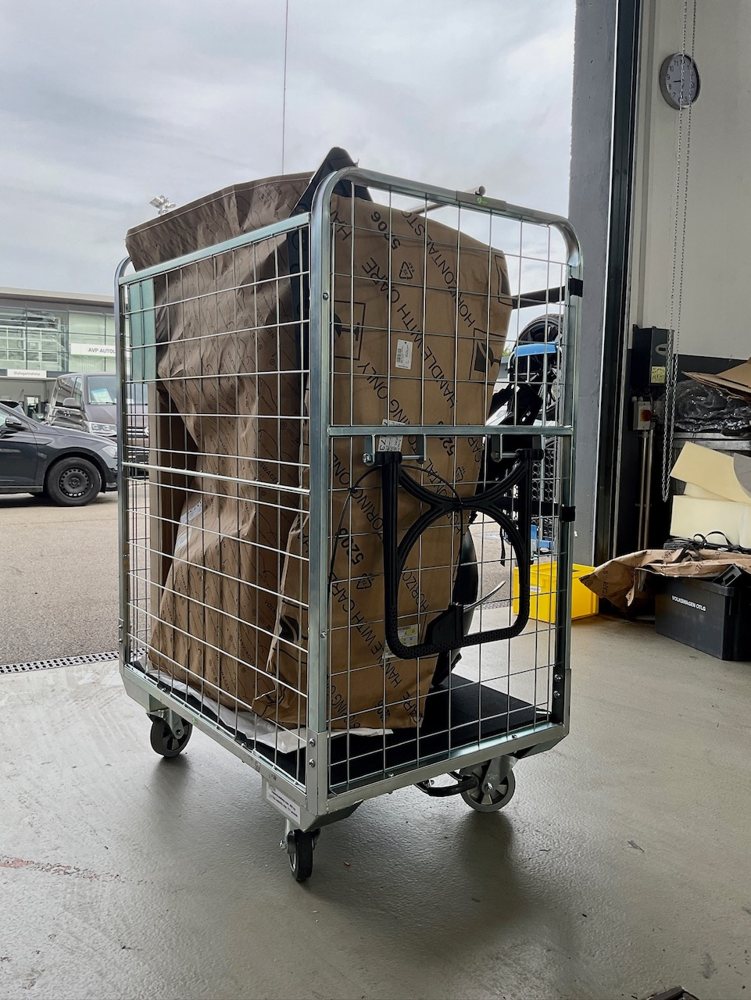

Loggyflex Maxi: wide trolley with mesh cage
The Maxi is the extra-wide trolley for bulky items: 815 instead of 590 mm wide, with a mesh cage on three sides and 350 kg load capacity. It carries complete sets of parts for accident repairs, as well as front and rear panels, seats or suspension parts.
Loggyflex Maxi trolley
1,235 × 815 × 1,600 mm · 62 kg · 350 kg load capacity
Good to know
Pairs well with: Trygo add-on attachment for hanging goods and a dedicated foam pad in Maxi size.
Mesh cage on three sides
Holds bulky parts together during transport.
350 kg load capacity
On a solid base made of film-faced plywood.
Central foot brake
Plus a handbrake lever in the swivelling handle for downhill slopes.
2 lashing straps
With quick-release fasteners, for securing the load.
For everything that does not fit on a Standard
Where the Standard is too narrow, the Maxi offers a footprint of 1,235 × 815 mm. It is delivered individually and ready for use.
Matching accessories for retrofitting
Every Loggyflex grows with its tasks: an intermediate shelf, the RT conversion kit, a coupling and drawbar or protective pads can be added at any time.

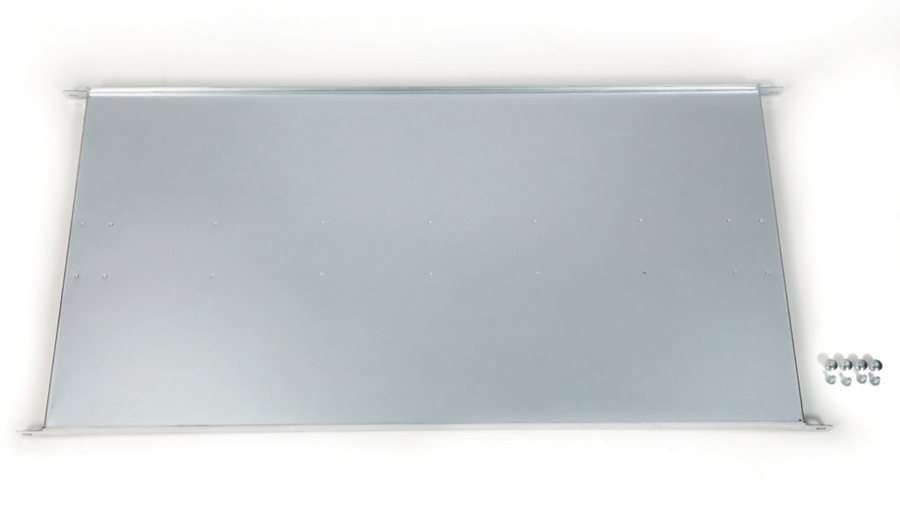

Loggyflex intermediate shelf
Turns a Standard into a Duo and a Duo into a Trio. Galvanised sheet steel, magnetic, long sides folded upwards. Fitted in around 5 minutes with the fixings supplied.
1,200 × 600 × 38 mm · 7 kg · up to 100 kg · for the Standard and Duo
View in the shop →

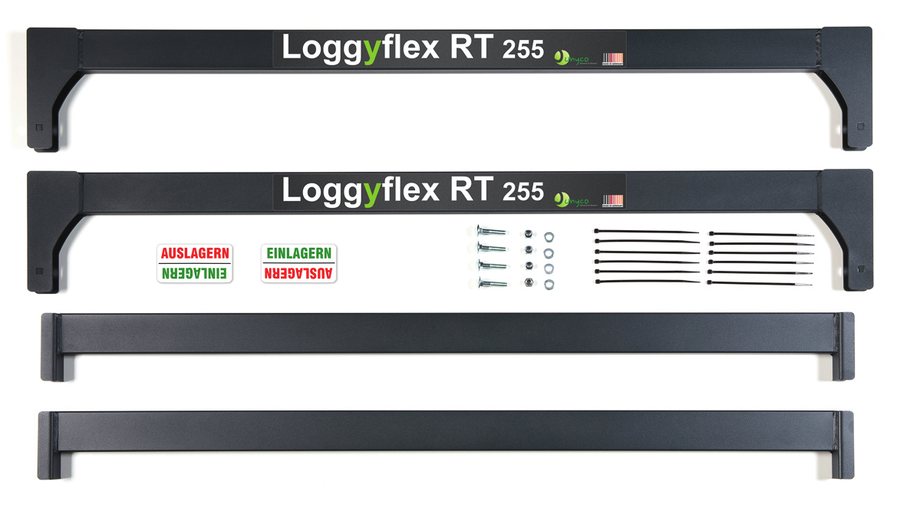

RT conversion kit for Loggyflex
Turns a Standard into the Loggyflex RT 255 tyre trolley in around 15 minutes. Magnetic, with 4 steel beams, fixings and 2 magnetic label holders.
1,190 × 28 × 180 mm · 15 kg · for all Loggyflex Standard trolleys
View in the shop →

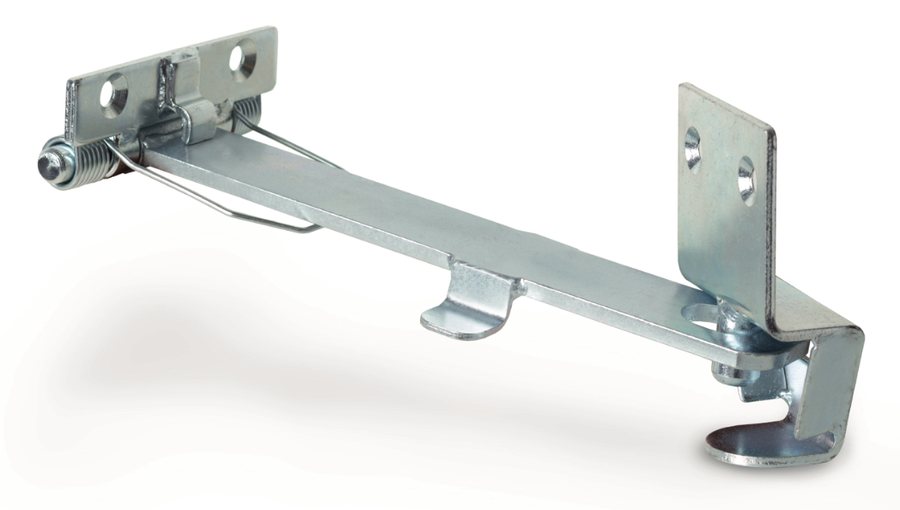

Loggyflex coupling and drawbar kit (2 pieces)
Connects up to 10 Loggyflex trolleys into a tow train, for example 10 RT 255 with 20 sets of wheels. Drop-forged steel, 1 tonne of towing capacity per kit, fitted in around 5 minutes. Only available together with Loggyflex trolleys.
Packaging unit of 2 kits, €99.50 per kit · spring-loaded drawbar, 315 mm
View in the shop →

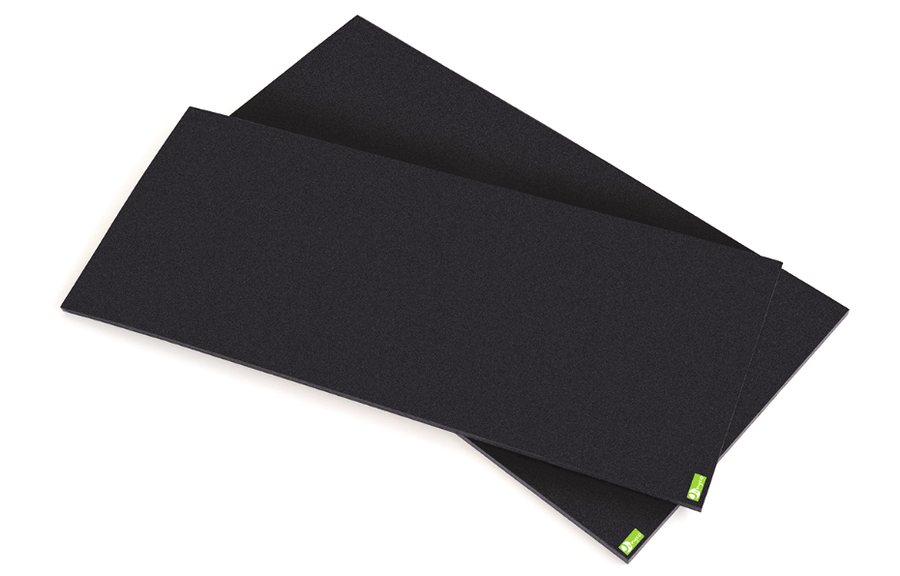

Foam pad for the plastic floor
Protects sensitive car parts on the plastic floor from damage, especially in the bodywork and paintwork area.
1,115 × 473 × 14 mm · Made in Germany
View in the shop →

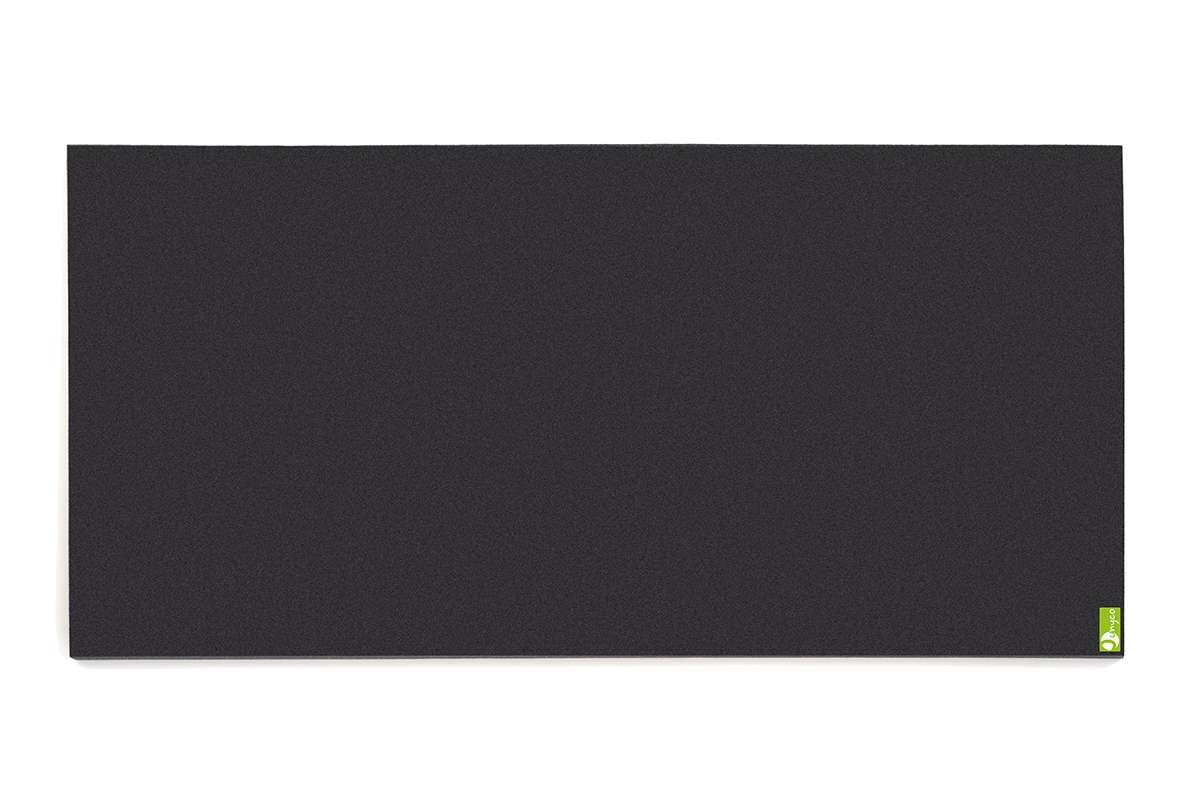

Foam pad for the intermediate shelf
Protects sensitive car parts on the intermediate shelf from damage, especially in the bodywork and paintwork area.
1,110 × 570 × 14 mm · Made in Germany
View in the shop →

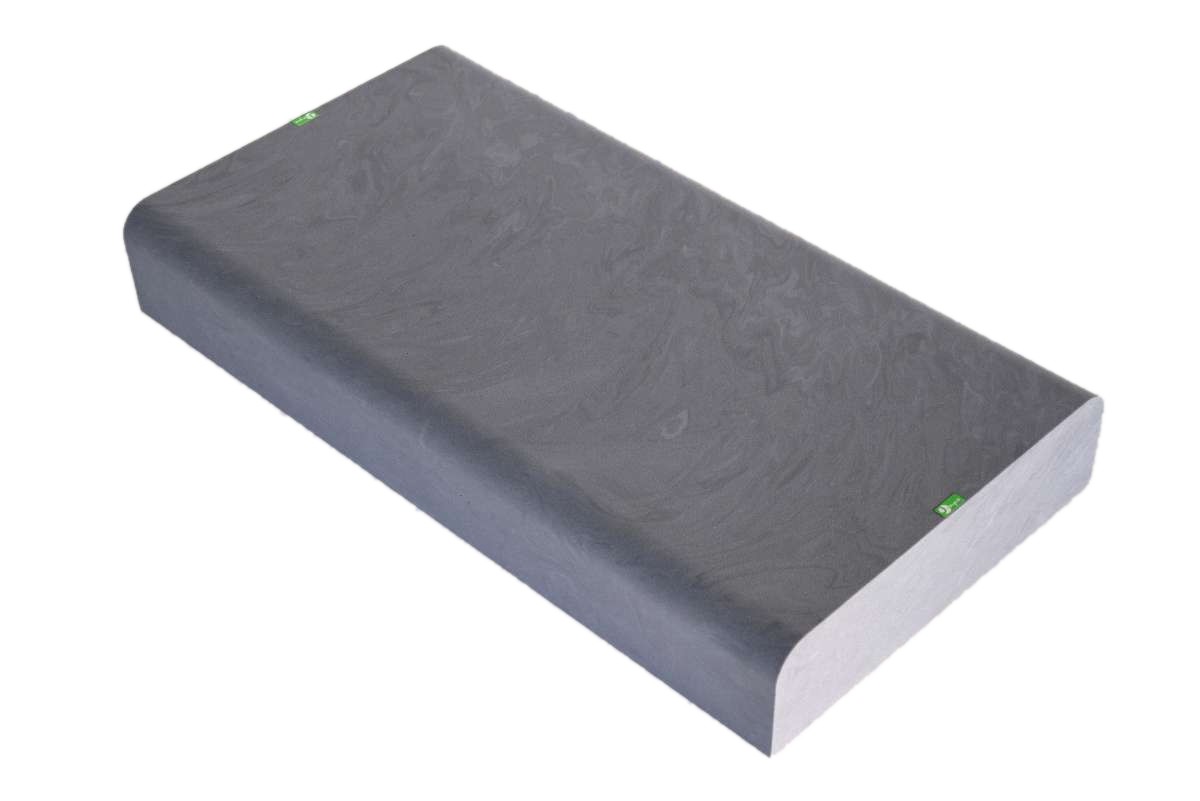

Foam pad for the Loggyflex Duo mini
Protects sensitive car parts from damage, especially in the bodywork and paintwork area. Fits the Loggyflex Duo mini.
1,120 × 573 × 160 mm · Made in Germany
View in the shop →

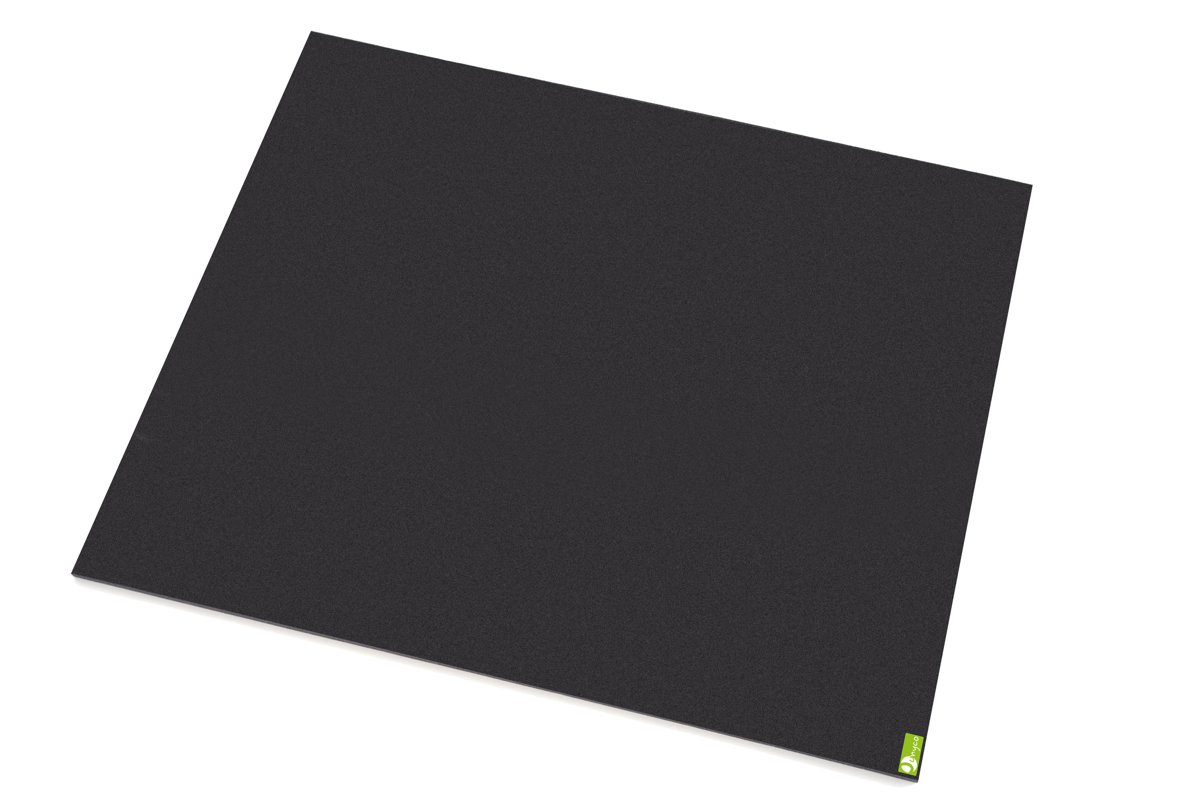

Foam pad for the Loggyflex Maxi
Protects sensitive car parts on the Loggyflex Maxi from damage, especially in the bodywork and paintwork area.
1,115 × 775 × 14 mm · Made in Germany
View in the shop →

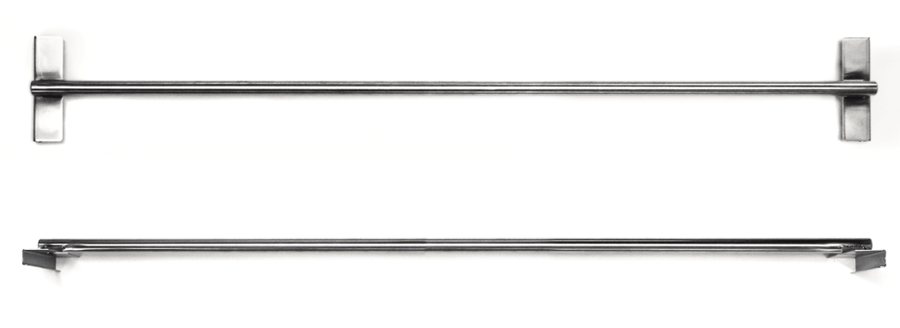

Loggyflex Trygo add-on attachment
Attachment for hanging goods such as floor mat sets or textiles. Made of stainless steel, fitted without tools and self-adjusting.
1,205 × 150 × 45 mm · 2.5 kg · up to 35 kg · for all Loggyflex trolleys
View in the shop →

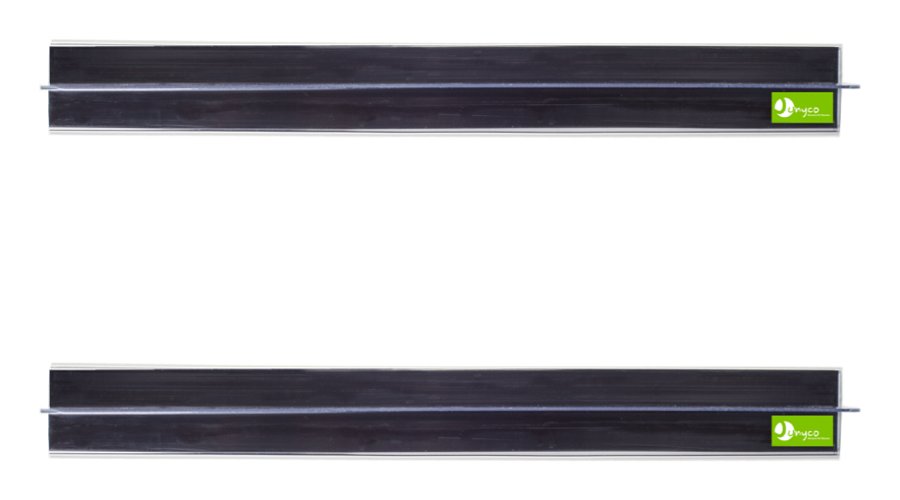

Loggyflex intermediate shelf anti-roll guard (2 pieces)
Magnetic strip for the sides of the intermediate shelf. Stops small parts from rolling off.
Packaging unit of 2 pieces, €4.45 per piece · PVC with magnetic tape
View in the shop →

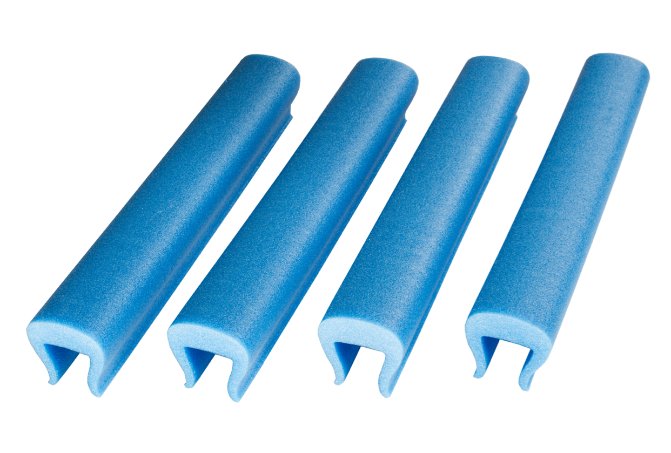

Loggyflex SoftTops (4 pieces)
Non-slip pad for the side sections of the Loggyflex. Protects delicate parts such as bumpers and acts as rim protection on the RT 255.
Packaging unit of 4 pieces, €4.73 per piece · 400 mm long
View in the shop →You can buy Loggyflex trolleys and accessories in the unyco shop. All prices net, excl. VAT and shipping, delivery time 28 days.
Questions about the Loggyflex trolley family
Which Loggyflex models are available?
Five trolleys and one tyre trolley: Standard, Duo, Duo mini, Trio, Loggyflex RT 255 and Maxi. There are also accessories for retrofitting, from the intermediate shelf to the coupling and drawbar kit.
Which Loggyflex suits my task?
The Standard for collecting materials, the Duo as an assembly trolley for components, the Duo mini as a mobile workbench for body parts, the Trio for engine removal, the RT 255 tyre trolley for complete wheels and the Maxi for bulky parts.
Do all Loggyflex trolleys have a handbrake?
Yes. Every Loggyflex has a handbrake lever in the swivelling handle for downhill slopes, plus a parking brake that holds the loaded trolley in place. All 160 mm castors are braked.
Can a fully loaded Loggyflex be pushed easily?
Yes. The 160 mm castors have a low breakaway force: the Loggyflex starts moving with little effort even when fully loaded and runs over rough floors without jamming. All castors are braked and acid-resistant.
Which trolley is suitable for body parts such as bumpers and wings?
For individual parts such as bumpers, wings or windscreens, choose the Duo mini, as it is accessible from four sides. For complete sets of parts for accident repairs, choose the 815 mm wide Maxi. The foam pad protects delicate painted parts.
Can a Loggyflex be lifted with a forklift?
Yes, the Standard, Duo, Duo mini, Trio and RT 255 can. They have pockets for the forks and can be lifted fully loaded to another storage level, an upper floor or onto a lorry without anything having to be reloaded.
What is the difference between the Loggyflex Standard, Duo and Trio?
The chassis and dimensions are the same (1,200 × 590 × 1,600 mm). The difference is the number of magnetic intermediate shelves: none on the Standard, one on the Duo, two on the Trio. The load capacity increases accordingly from 300 to 400 to 500 kg.
What is the difference between the Loggyflex Duo and Duo mini?
Both have an intermediate shelf for 100 kg and carry 300 kg on the plastic base. On the Duo mini, the side beams are shortened: it is 1,100 instead of 1,600 mm high and accessible from all four sides. Its intermediate shelf can be fitted at three heights.
What is the Loggyflex Maxi suitable for?
For bulky parts that do not fit on a Standard. It is 815 mm wide, has a mesh cage on three sides and carries 350 kg, for example complete sets of parts for accident repairs, or front and rear panels.
How wide are the Loggyflex trolleys?
The Standard, Duo, Duo mini, Trio and RT 255 are 590 mm wide and fit between two lifts or through narrow aisles. At 815 mm, the Maxi is deliberately wider.
Can a Loggyflex trolley be upgraded later?
Yes. With an intermediate shelf, the Standard becomes a Duo and the Duo becomes a Trio; fitting takes around 5 minutes. The Trygo add-on attachment fits all Loggyflex trolleys. Also available: foam pad, anti-roll guard and SoftTops.
Can a Loggyflex trolley be converted into a tyre trolley?
Yes. With the RT conversion kit (€399 net), you can convert a Standard into a Loggyflex RT 255 yourself in around 15 minutes. Outside the tyre season, you convert it back into a Standard and, with an intermediate shelf, turn it into a mobile workbench like the Duo or Trio.
How many Loggyflex trolleys can be coupled into a tow train?
Up to 10 trolleys. The coupling and drawbar kit has 1 tonne of towing capacity per kit and is fitted in around 5 minutes. With 10 RT 255 trolleys, you can move 20 sets of wheels at once.
How much does a Loggyflex trolley cost?
Loggyflex trolleys cost between €645 (Standard) and €1,035 (Maxi) net, excl. VAT and shipping. The Duo costs €749, the Duo mini €849, the Trio €895 and the RT 255 tyre trolley €1,025 net.
Where can I buy a Loggyflex and how long does delivery take?
You can buy Loggyflex trolleys and accessories in the unyco shop at unyco.eu. The delivery time is 28 days. Arne Büchner will answer questions about choosing the right model directly on +49 8743 97 89 112.
